Schneider Electric MA8IMA16
MPNMA8IMA16
Obsolete

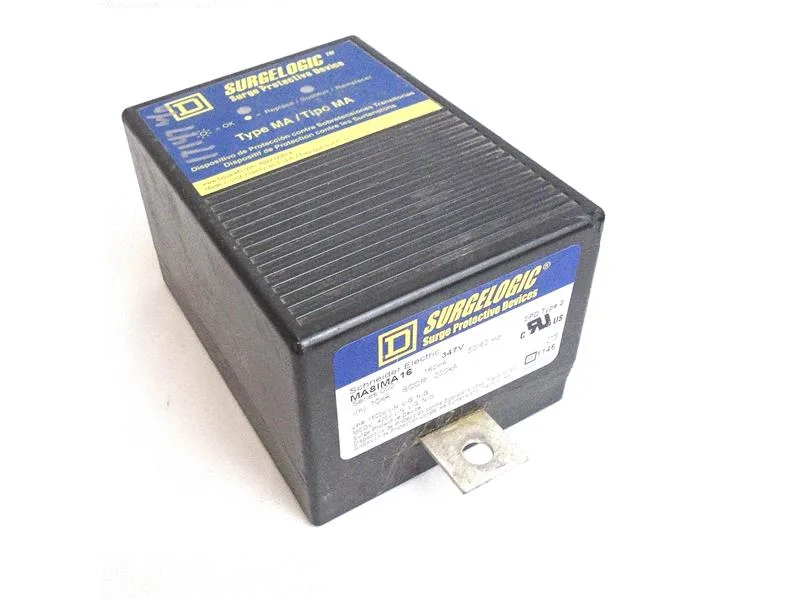

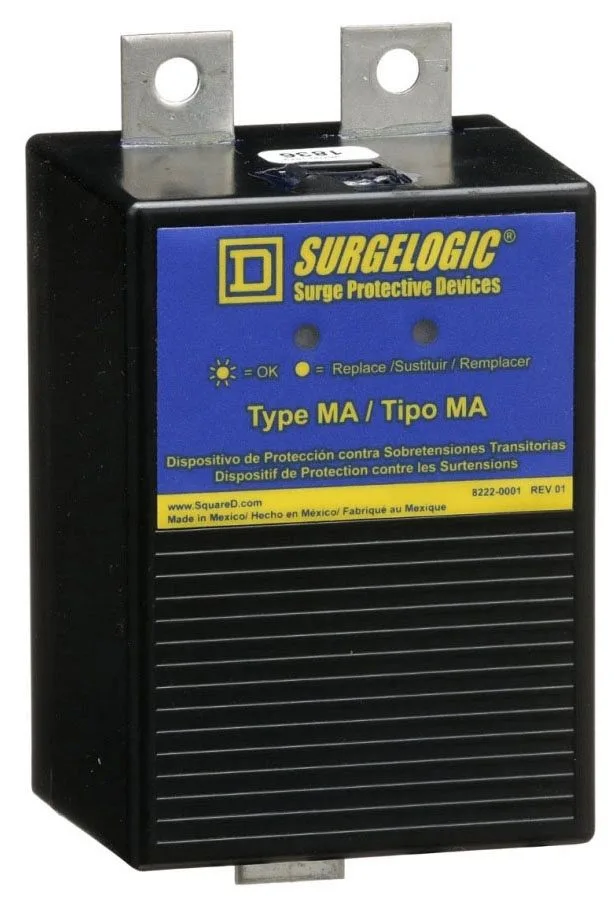

SQUARE D MA8IMA16: IMA MA MODULE, 347V, 160KA
$640.00 – $1,228.84Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 600Y/347 V AC |
| Surge current | 160 kA per phase |
| Nominal discharge current | 20 kA |
| Phases | 3 phase |
| IP rating | NEMA 2 |
| Enclosure material | Black Plastic |
| Mounting support | Panel mounting |
| Connection | Terminals |
| Depth | 2.7 in (68.3 mm) |
| Width | 3.3 in (82.8 mm) |
| Height | 6.3 in (158.8 mm) |
| Standards | UL 1449:ed. 4 UL 1283:ed. 5 CSA C22.2 No 8:1986 ANSI/IEEE C62.41 ANSI/IEEE C62.45 NEC 285 |
All specifications
| Parameter | Value |
|---|---|
| MCOV | 420 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection module |
| Category | US1DE1B08467 |
| Local signalling | Status LED green normal operation |
| Ambient operating | 149 °F (65 °C) |
| Device short name | IMA |
| Accessory category | Replacement part |
| Provided equipment | Alarm enable/disable switch |
| Wiring configuration | 4-wire |
MPN
MA8IMA16
