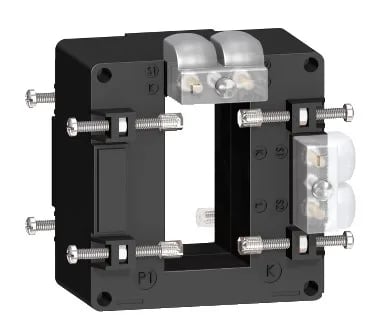

Schneider Electric METSECT5DA040
MPNMETSECT5DA040
Active
METSECT5DA040 - TROPICALISED FOR BUSBAR by SQUARE D
$36.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Current transformer type | Tropicalised for busbar Solid core |
| Product or component type | Current transformer |
| Dynamic withstand current | 2.5 Ith |
| Voltage | 3 kV |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Secondary current | 5 A |
| Current | 400 A |
| Current transformer ratio | 400/5 |
| [Ith] conventional free air thermal current | 24 kA |
| IP degree of protection | IP20 |
| Mounting mode | Insulated locking screw |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | Busbar |
| Relative humidity | 0...95 % |
| Depth | Frame : 40 mm Total : 87 mm |
| Width | Outside: 90 mm Inner: 65 mm |
| Height | Outside: 94 mm Inner: 32 mm |
| Standards | VDE 0414 IEC 61869-2 |
| Range | PowerLogic |
| Sealing | With |
| Accuracy | Class 0.5 at 4 VA Class 1 at 8 VA |
| Opening of bars | 65 x 32 |
| Maximum safety factor | 5 |
| Electrical insulation class | Class B |
| Ambient air temperature for operation | -25...60 °C |
MPN
METSECT5DA040
