Schneider Electric METSECT5DE100
MPNMETSECT5DE100
Active

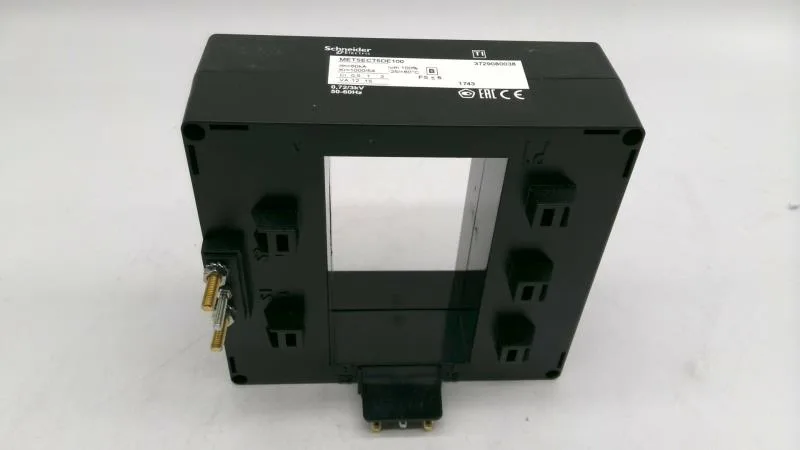

METSECT5DE100 - CURRENT RATIO: 1000/5 AMP by SQUARE D
$90.17Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Current transformer type | Tropicalised for busbar Solid core |
| Product or component type | Current transformer |
| Dynamic withstand current | 2.5 Ith |
| Voltage | 3 kV |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Secondary current | 5 A |
| Current | 1000 A |
| Current transformer ratio | 1000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| IP degree of protection | IP20 |
| Mounting mode | Insulated locking screw |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | Busbar |
| Relative humidity | 0...95 % |
| Depth | Frame : 50 mm Total : 85 mm |
| Width | Inner: 55 mm Outside: 135 mm |
| Height | Outside: 129 mm Inner: 103 mm |
| Standards | VDE 0414 IEC 61869-2 |
| Range | PowerLogic |
| Sealing | With |
| Accuracy | Class 0.5 at 12 VA Class 1 at 15 VA |
| Opening of bars | 102 x 54 |
| Maximum safety factor | 5 |
| Electrical insulation class | Class B |
| Ambient air temperature for operation | -25...60 °C |
MPN
METSECT5DE100
