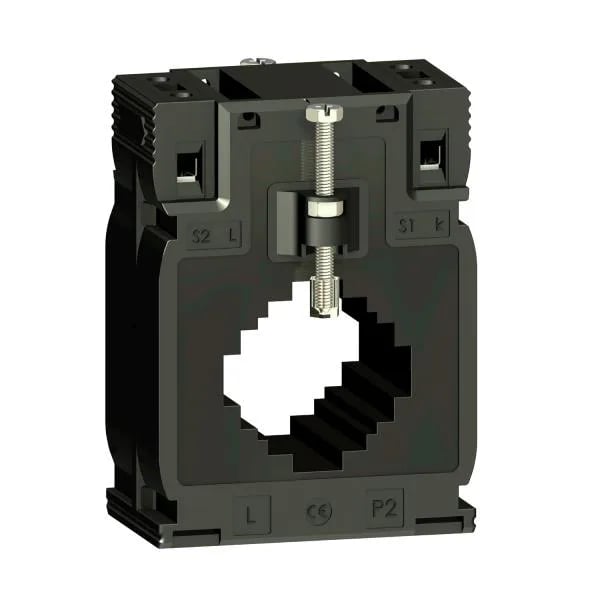

Schneider Electric METSECT5MC025
MPNMETSECT5MC025
Active
METSECT5MC025 - POWERLOGIC RANGE by SQUARE D
$31.48Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Current transformer type | Tropicalised for busbar and cable Solid core |
| Product or component type | Current transformer |
| Dynamic withstand current | 2.5 Ith |
| Voltage | 3 kV 50 Hz for 1 minute |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Secondary current | 5 A |
| Current | 250 A |
| Current transformer ratio | 250/5 |
| [Ith] conventional free air thermal current | 15 kA |
| IP degree of protection | IP20 |
| Mounting mode | Clip-on Insulated locking screw By screws |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | DIN rail Mounting plate Busbar |
| Cable outer diameter | 32 mm |
| Relative humidity | 0...95 % |
| Depth | Frame : 45 mm Total : 65 mm |
| Width | Outside: 70 mm Inner: 41 mm |
| Height | Outside: 95 mm Inner: 41 mm |
| Standards | VDE 0414 IEC 61869-2 |
| Range | PowerLogic |
| Sealing | Without |
| Diameter | 32 mm |
| Accuracy | Class 0.5 at 3 VA Class 1 at 5 VA |
| Opening of bars | 40.5 x 10.5 32.5 x 20.5 25.5 x 25.5 |
| Maximum safety factor | 5 |
| Electrical insulation class | Class B |
| Ambient air temperature for operation | -25...60 °C |
MPN
METSECT5MC025
