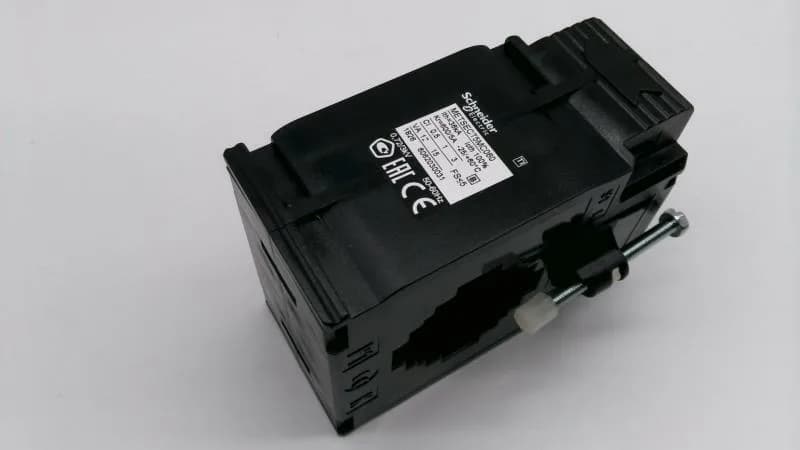

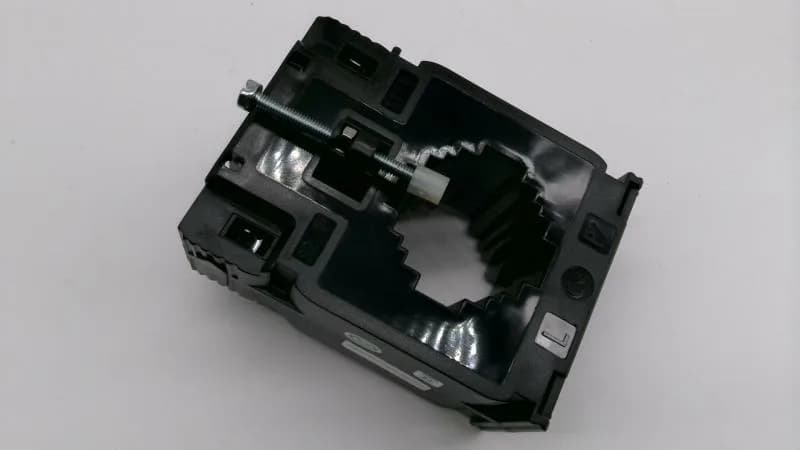

The Schneider Electric METSECT5MC060 is a solid-core current transformer from the PowerLogic range, rated 600 A primary with a 600/5 ratio and accuracy class 0.5 at 12 VA (class 1 at 15 VA). It's built for busbar or cable mounting — three window sizes are listed: 32.5×20.5 mm, 25.5×25.5 mm, and 40.5×10.5 mm — so the buyer needs to confirm their conductor fits one of those openings. The thermal short-time current (Ith) is 36 kA, and dynamic withstand is 2.5 × Ith. That puts it in a solid range for general low-voltage metering and protection circuits up to 600 A.
Compliance documentation includes VDE 0414 and IEC 61869-2. That covers the typical tender requirement for metering-class CTs. RoHS/REACH declarations are standard from Schneider; if you need the specific certificate, I can attach it to the RFQ response.
Mounting options: screws, clip-on, or insulated locking screw. Support can be DIN rail, mounting plate, or busbar. The frame depth is 45 mm, total depth 65 mm; outside width 70 mm, inner window width 41 mm. That makes it compatible with most standard panel layouts — just watch the busbar clearance for the 65 mm total depth. Cable diameter maximum is 32 mm; the CT is tropicalised and rated IP20. Ambient operating temperature -25 to 60 °C, with relative humidity up to 95 %.
