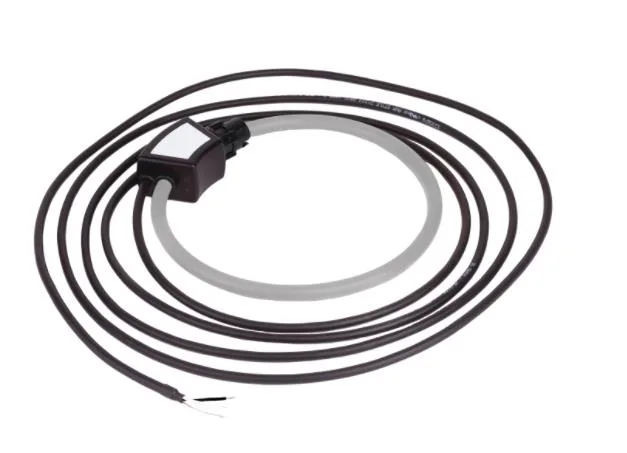

The Square D PowerLogic METSECTR60500 is a flexible-core Rogowski Coil current transducer rated for 50–5000 A measurement with 1 % accuracy. It carries UL 61010-2-032 and EN 61010-1 certifications, pollution degree 2, and installation category IV. The flying lead (7.9 ft / 2.4 m) and IP67 housing mean it can be fitted in damp or confined spaces — common for retrofit metering on existing busbars.
METSECTR60500 Rogowski Coil, Obsolete – 50–5000 A
MPNMETSECTR60500
Obsolete
Square D PowerLogic METSECTR60500 Rogowski Coil current transducer, flexible core, 50–5000 A, IP67, flying lead 2.4 m. Obsolete – sourced as available.
$204.47 – $462.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Current transformer type | Flexible core |
| Product or component type | Current transducer |
| Measurement current | 50...5000 A |
| Network frequency | 50 Hz |
| Frequency measurement range | 50...1500 Hz |
| IP degree of protection | IP67 |
| Installation category | IV |
| Electrical connection | Flying lead 7.9 ft (2.4 m)600 V |
| Pollution degree | 2 |
| Relative humidity | 0...95 % |
| Height | Opened: 23.6 in (600 mm) |
| Standards | UL 61010-2-032 ANSI/IEEE C57.13 EN 61010-1 UL 61010-1 EN 61010-2-032 |
All specifications
| Parameter | Value |
|---|---|
| Range | PowerLogic |
| Category | US10PL109661 |
| Diameter | closed 7.5 in (191 mm) |
| Thickness | 0.3 in (8 mm) |
| Measurement accuracy | 1 % |
| Accessory (separate part category) | Measurement accessory |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
Product details
MPN
METSECTR60500
