The METSECTSP5A3060U is a split-core current transformer from the PowerLogic range, rated 600 A primary to 5 A secondary. The split-core design allows installation around a conductor without disconnecting it, which suits retrofit or live-panel work. Accuracy is 1 %, enough for submetering applications. It complies with UL 2808 and IEC 61869-2 for safety and performance in indoor panels.

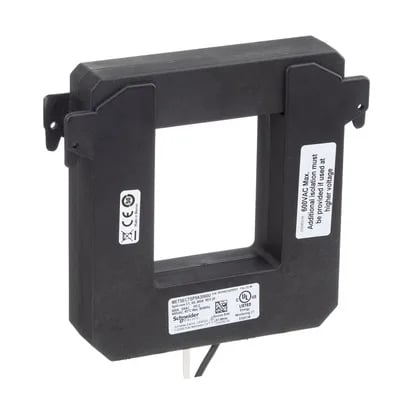

METSECTSP5A3060U PowerLogic Split-Core CT, 600/5
MPNMETSECTSP5A3060U
Active
Schneider Electric PowerLogic split-core current transformer, 600 A primary, 5 A secondary, UL 2808 and IEC 61869-2.
$180.59 – $251.41Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Current transformer type | Split core |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Current transformer ratio | 600/5 |
| Primary operational current | 600 A |
| Network frequency | 50 Hz 60 Hz |
| Mounting location | Indoor use only |
| Installation category | III |
| Electrical connection | 8 ft (2.4 m) AWG 16 flying lead |
| Pollution degree | 2 |
| Relative humidity | 0...95 % non condensing |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | <= 6561.68 ft (2000 m) |
| Depth | 1.12 in (28.45 mm) |
| Width | Internal: 2.46 in (62.48 mm) Total: 5.83 in (148.08 mm) |
| Height | Internal: 2.9 in (73.7 mm) Total: 5.36 in (136.14 mm) |
| Standards | UL 2808 IEC 61869-2 |
| Range | PowerLogic |
| Category | US10PL109661 |
| Insulation | Basic insulation 600 V AC Reinforced insulation 300 V AC |
| Measurement accuracy | 1 % |
| Accessory (separate part category) | Measurement accessory |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
Product details
Frequently asked questions
What standards does this current transformer comply with?
It complies with UL 2808 and IEC 61869-2.
What is the accuracy of this CT?
Rated measurement accuracy is 1 %.
What is the secondary output current?
5 A at the rated 600 A primary.
