METSECTSP5A4120U - Schneider Electric
MPNMETSECTSP5A4120U
Active

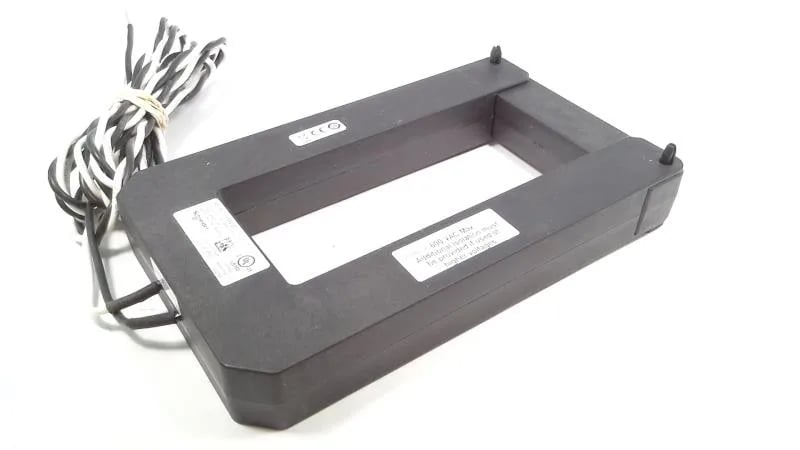

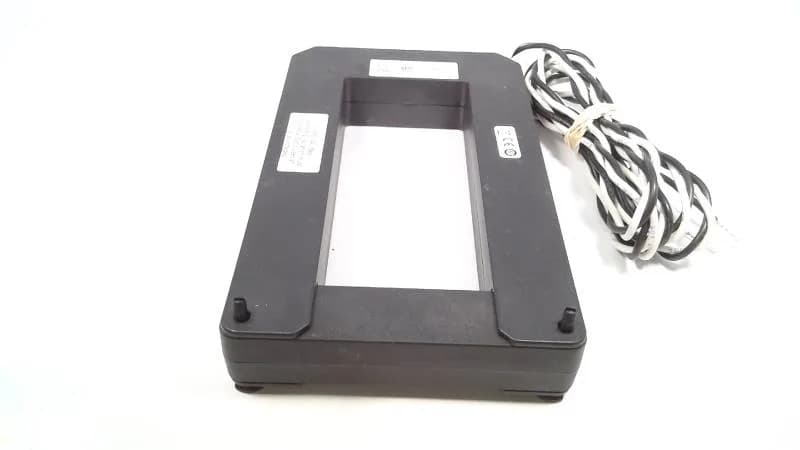

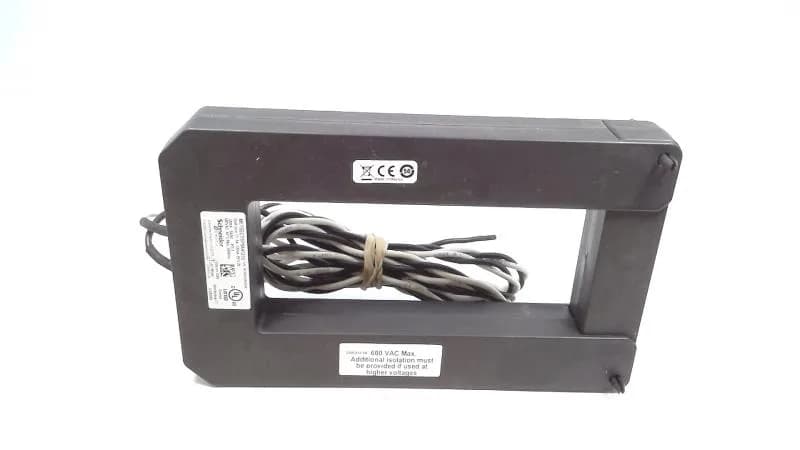

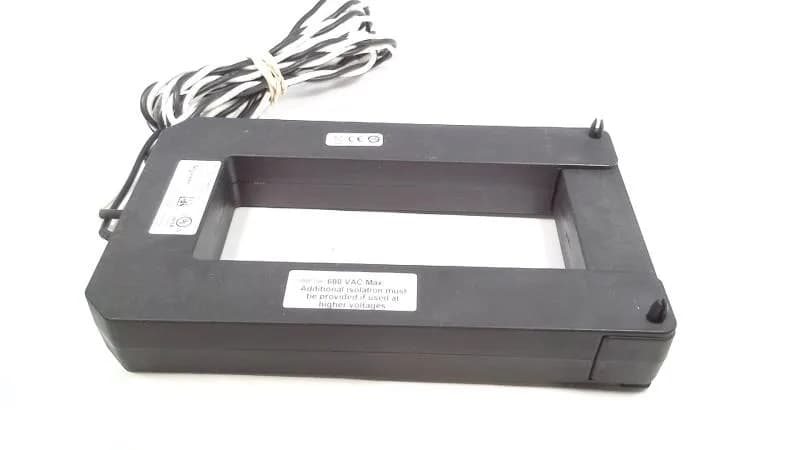

Square D METSECTSP5A4120U 1200A Transformer|Square D METSECTSP5A4120U 1200A Transformer
$220.88 – $233.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Current transformer type | Split core |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Current transformer ratio | 1200/5 |
| Primary operational current | 1200 A |
| Network frequency | 50 Hz 60 Hz |
| Mounting location | Indoor use only |
| Installation category | III |
| Electrical connection | 8 ft (2.4 m) AWG 16 flying lead |
| Pollution degree | 2 |
| Relative humidity | 0...95 % non condensing |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | <= 6561.68 ft (2000 m) |
| Depth | 1.16 in (29.46 mm) |
| Width | Internal: 2.47 in (62.74 mm) Total: 4.91 in (124.71 mm) |
| Height | Internal: 5.73 in (145.54 mm) Total: 8.12 in (206.25 mm) |
| Standards | UL 2808 IEC 61869-2 |
| Range | PowerLogic |
| Category | US10PL109661 |
| Insulation | Basic insulation 600 V AC Reinforced insulation 300 V AC |
| Measurement accuracy | 1 % |
| Accessory (separate part category) | Measurement accessory |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
MPN
METSECTSP5A4120U
