Schneider Electric METSECTSP5A4200U

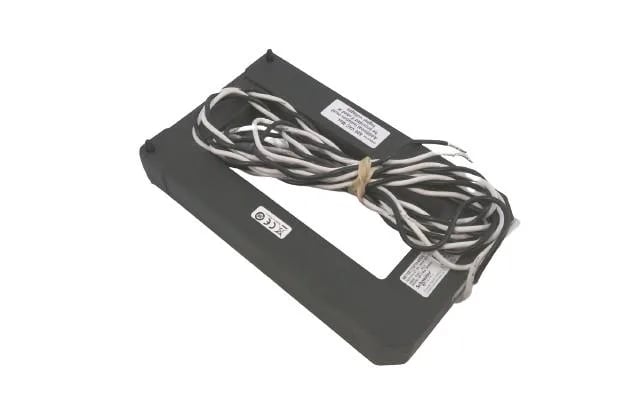

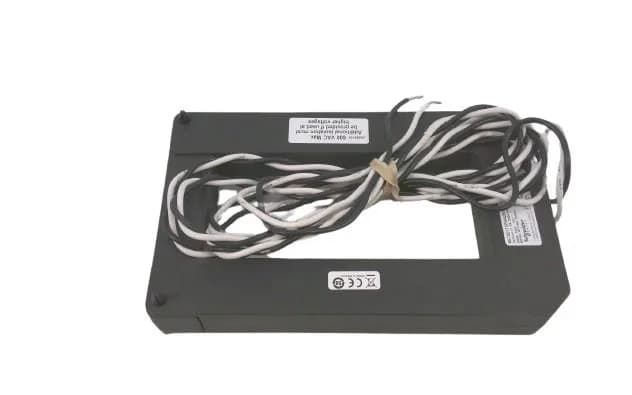

Square D METSECTSP5A4200U Split-Core CT, 2000/5A

MPNMETSECTSP5A4200U
Active

Square D PowerLogic METSECTSP5A4200U, split-core current transformer, 2000/5 A ratio, 1 % accuracy.

$224.97 – $262.00Ref. price · indicative, final on quote
Schneider Electric METSECTSP5A4200U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

METSECTSP5A4200U key specifications
ParameterValue
Network typeAC
Current transformer typeSplit core
Product or component typeCurrent transformer
Secondary current5 A
Current transformer ratio2000/5
Primary operational current2000 A
Network frequency50 Hz 60 Hz
Mounting locationIndoor use only
Installation categoryIII
Electrical connection8 ft (2.4 m) AWG 16 flying lead
Pollution degree2
Relative humidity0...95 % non condensing

All specifications

METSECTSP5A4200U additional specifications
ParameterValue
Operating altitude<= 6561.68 ft (2000 m)
Depth1.16 in (29.46 mm)
WidthInternal: 2.47 in (62.74 mm) Total: 4.91 in (124.71 mm)
HeightInternal: 5.73 in (145.54 mm) Total: 8.12 in (206.25 mm)
StandardsUL 2808 IEC 61869-2
RangePowerLogic
CategoryUS10PL109661
InsulationBasic insulation 600 V AC Reinforced insulation 300 V AC
Measurement accuracy1 %
Accessory (separate part category)Measurement accessory
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...140 °F (-15...60 °C)

Product details

The METSECTSP5A4200U: Split-core CT from the PowerLogic range. Rated for 2000 A primary / 5 A secondary, 1 % accuracy — suitable for submetering or energy monitoring where revenue-grade measurement is not required but consistent tracking matters. Flying lead of 8 ft (AWG 16) lets you land terminations in the enclosure without extending the cable. Fixed ratio at 2000/5 — no taps, so confirm your meter's input range before committing.

Installation & environment

Indoor use only, pollution degree 2, altitude up to 2000 m. Operating ambient -15…60 °C, storage -40…70 °C — typical indoor substation or switchgear room conditions. Split-core design enables retrofit on existing conductors without a shutdown. Verify secondary-wiring polarity before closing the core.

Standards & lifecycle

Compliant with UL 2808 and IEC 61869-2. Basic insulation rated 600 V AC, reinforced insulation 300 V AC. Installation category III.

Frequently asked questions

What compliance documentation does this part have?

It is certified to UL 2808 and IEC 61869-2, with basic insulation at 600 V AC and reinforced insulation at 300 V AC.

What is the primary current rating?

Rated 2000 A primary / 5 A secondary, fixed 2000/5 ratio.
