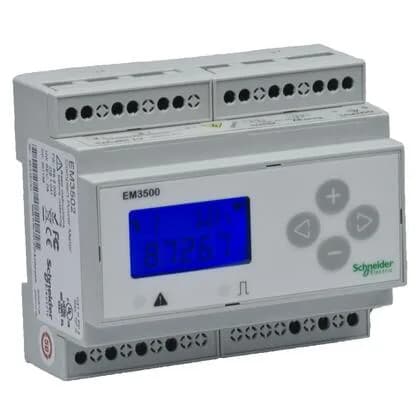

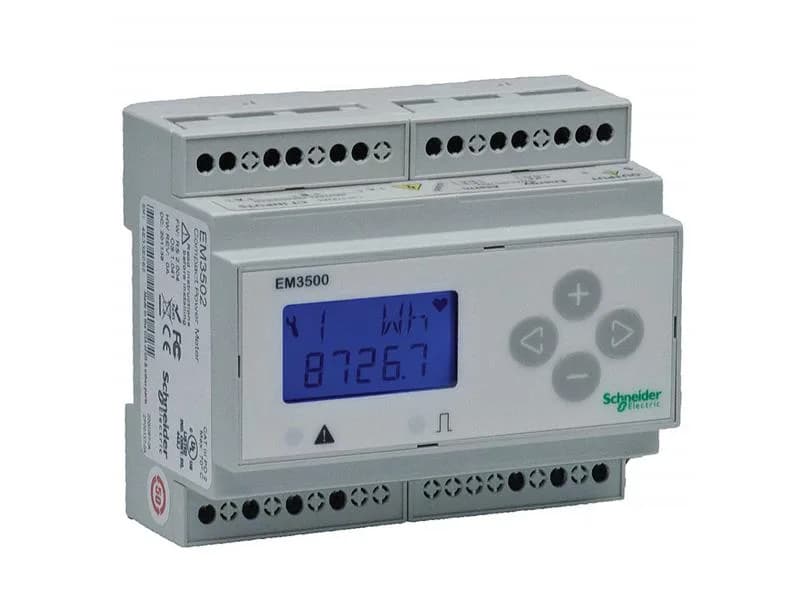

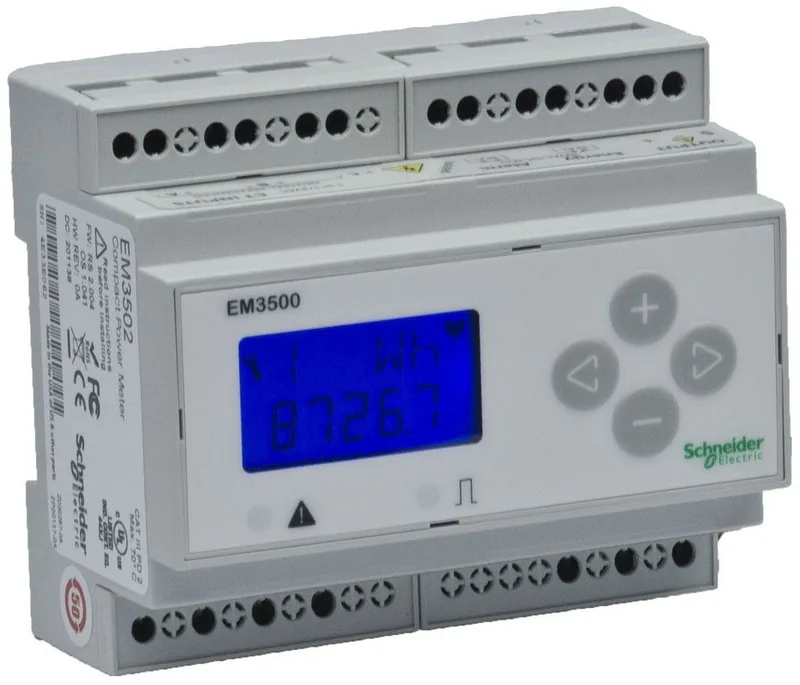

Schneider Electric METSEEM3555

Schneider METSEEM3555 PowerLogic EM3555 power meter, 3-phase, 0.333/1 V CT input

MPNMETSEEM3555
Active

Schneider Electric PowerLogic EM3555 METSEEM3555 power meter, 3-phase, 347 V supply, low voltage CT input 0.333 V or 1 V, 32 kA switching current, Modbus RTU, Class 0.2S accuracy, backlit LCD display.

$627.38 – $1,260.00Ref. price · indicative, final on quote
Schneider Electric METSEEM3555 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

METSEEM3555 key specifications
ParameterValue
Input typeLow voltage current transformer 0.333 V or 1 V
Display typeBacklit LCD
Metering typePeak demand power PM, QM, SM Current I1, I2, I3, Iavg Active, reactive, apparent energy (signed, four quadrant) Demand power P, Q, S Voltage U21, U32, U13, V1, V2, V3
Technology typeElectronic
Range of productPowerLogic EM3500
Type of measurementActive and reactive power total Active and reactive power per phase Apparent power total Apparent power per phase Power factor total Power factor per phase Peak demand power Current Voltage Frequency
Product or component typeEnergy meter
Voltage90...347 V
[Ue] rated operational voltage90...347 V AC 50/60 Hz between phase and neutral UL 156...600 V AC 50/60 Hz between phases UL 90...300 V AC 50/60 Hz between phase and neutral CE 125...300 V DC
Measurement current5...32000 A
Power consumption in5 VA 347 V AC between phase and neutral) 5 VA 600 V AC between phases)
Network frequency60 Hz 50 Hz

All specifications

METSEEM3555 additional specifications
ParameterValue
I/O channels1 alarm output 1 pulse
Poles description3P + N
Communication serviceTotal cumulated active energy Total cumulated energy
Communication of dataInstantaneous and demand values Lifetime energy production
Communication port supportScrew terminal block RS485
Communication port protocolModbus RTU 1200...38400 bps - 2-wire
Mounting modeClip-on By screws
Mounting supportDIN rail
Relative humidity0...95 %
ColorDark grey
Depth2.3 in (59 mm)
Width4.2 in (107 mm)
Height3.6 in (91 mm)
StandardsCSA C22.2 No 14-05 UL 508 IEC 61010-1
RangePowerLogic
CategoryUS10PL109798
Buffer size16-bit 10
9 mm pitches12
AccuracyClass 0.2S power IEC 62053-22 Class 0.2S energy IEC 62053-22 Class 0.2S power ANSI C12.20 Class 0.2S energy ANSI C12.20
Data recordingEnergy consumption logs Time stamping
Display digits5
Demand intervalsExternal synchronisation to communication Fixed or rolling block
Local signallingRed LED threshold reached Green flashing LED output signal
Device short nameEM3555
Ride-through time100 ms 120 V AC
Device applicationPartial meter Sub billing
Measurement accuracyPower +/- 0.2 % Energy +/- 0.2 %
Information displayedStatus and alert Communication with system Input/output status Error Tx activity Rx activity Instant power per usage
Tamperproof of settingsProtected by access code
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-22...158 °F (-30...70 °C)

Product details

Overview

The METSEEM3555 is a PowerLogic EM3555 panel-mount power meter from Schneider, wired for three-phase systems on a 347 V supply. It accepts low-voltage current transformer inputs at 0.333 V or 1 V and handles a switching current of 32 kA. Accuracy is Class 0.2S for both power and energy per IEC 62053-22 and ANSI C12.20, with a backlit LCD showing five digits. Communication is Modbus RTU over a 2-wire bus at 1200 to 38400 bps.

Selection vs METSEEM3555A

The key difference from the sibling METSEEM3555A is the input type: the METSEEM3555 uses low-voltage CTs (0.333 V or 1 V) while the METSEEM3555A uses a Rogowski coil rated 50 to 5000 A. The switching current also differs — 32 kA on the METSEEM3555 versus 5 kA on the METSEEM3555A. Choose the METSEEM3555 when the installation already has LV CTs and needs the higher 32 kA switching capacity; pick the METSEEM3555A for Rogowski-based metering at lower fault levels.

The METSEEM3555 carries CSA C22.2 No 14-05, UL 508, and IEC 61010-1 certifications, plus California Proposition 65 compliance. It is an active catalog item; lead time is confirmed via RFQ.
