METSEEM3555A - Schneider Electric
MPNMETSEEM3555A
Active

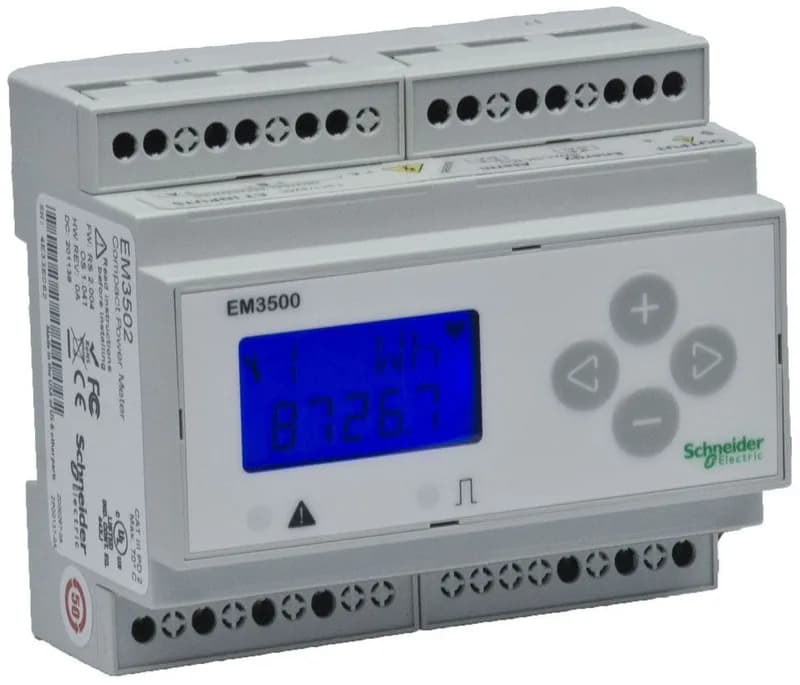

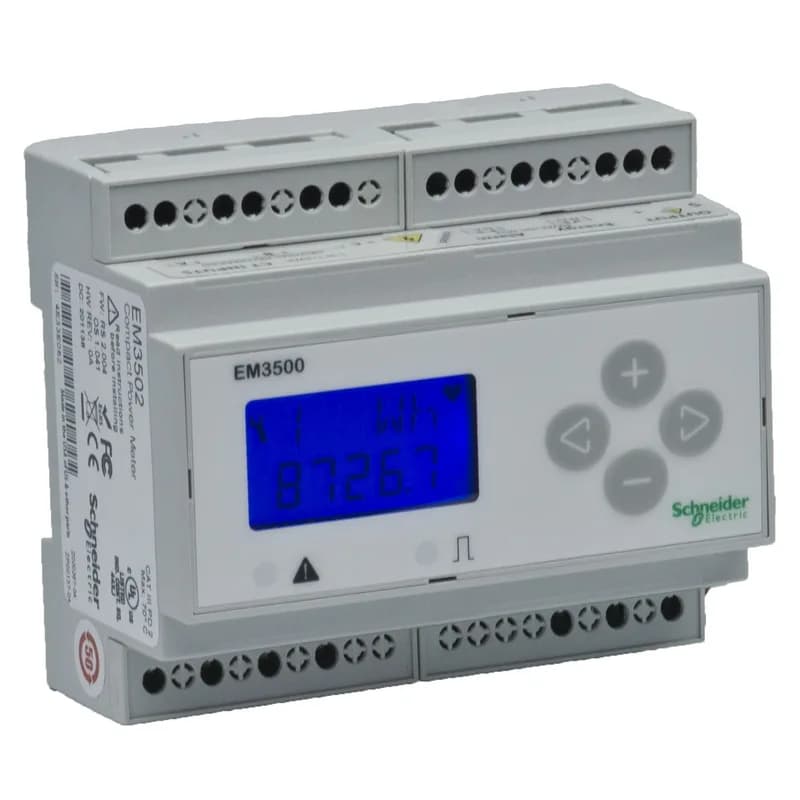

Square D METSEEM3555A Em3500-4Quad-Lgging-Mdbus-Rpe-Ct|Square D METSEEM3555A Em3500-4Quad-Lgging-Mdbus-Rpe-Ct
$1,260.00 – $1,314.12Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Input type | Rogowski coil 50...5000 A |
| Display type | Backlit LCD |
| Metering type | Demand power P, Q, S Peak demand power PM, QM, SM Voltage U21, U32, U13, V1, V2, V3 Active, reactive, apparent energy (signed, four quadrant) Current I1, I2, I3, Iavg |
| Technology type | Electronic |
| Range of product | PowerLogic EM3500 |
| Type of measurement | Active and reactive power total Active and reactive power per phase Apparent power total Apparent power per phase Power factor total Power factor per phase Peak demand power Current Voltage Frequency |
| Product or component type | Energy meter |
| Voltage | 90...347 V |
| [Ue] rated operational voltage | 90...347 V AC 50/60 Hz between phase and neutral UL 156...600 V AC 50/60 Hz between phases UL 90...300 V AC 50/60 Hz between phase and neutral CE 125...300 V DC |
| Measurement current | 20...5000 A |
| Power consumption in | 5 VA 347 V AC between phase and neutral) 5 VA 600 V AC between phases) |
| Network frequency | 60 Hz 50 Hz |
All specifications
| Parameter | Value |
|---|---|
| I/O channels | 1 alarm output 1 pulse |
| Poles description | 3P + N |
| Communication service | Total cumulated active energy Total cumulated energy |
| Communication of data | Lifetime energy production Instantaneous and demand values |
| Communication port support | Screw terminal block RS485 |
| Communication port protocol | Modbus RTU 1200...38400 bps - 2-wire |
| Mounting mode | By screws Clip-on |
| Mounting support | DIN rail |
| Relative humidity | 0...95 % |
| Color | Dark grey |
| Depth | 2.3 in (59 mm) |
| Width | 4.2 in (107 mm) |
| Height | 3.6 in (91 mm) |
| Standards | CSA C22.2 No 14-05 IEC 61010-1 UL 508 |
| Range | PowerLogic |
| Category | US10PL109798 |
| Buffer size | 16-bit 10 |
| 9 mm pitches | 12 |
| Accuracy | Class 0.5S power IEC 62053-22 Class 0.5S energy IEC 62053-22 Class 0.5S power ANSI C12.20 Class 0.5S energy ANSI C12.20 |
| Data recording | Energy consumption logs Time stamping |
| Display digits | 5 |
| Demand intervals | Fixed or rolling block External synchronisation to communication |
| Local signalling | Red LED threshold reached Green flashing LED output signal |
| Device short name | EM3555A |
| Ride-through time | 100 ms 120 V AC |
| Device application | Sub billing Partial meter |
| Measurement accuracy | Power +/- 0.5 % Energy +/- 0.5 % |
| Information displayed | Status and alert Communication with system Input/output status Error Tx activity Rx activity Instant power per usage |
| Tamperproof of settings | Protected by access code |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -22...158 °F (-30...70 °C) |
MPN
METSEEM3555A
