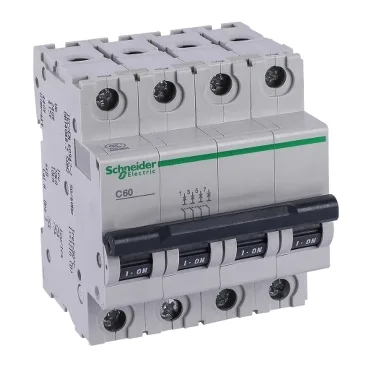

Schneider Electric Multi9 C60H series, MGN25145 miniature circuit breaker, 4-pole, D-curve, 16 A rated current, 30 kA breaking capacity at 240 V AC.
| Parameter | Value |
|---|---|
| Product name | C60 |
| Product range | Multi9 |
| Product range (series) | C60 |
| Product/component type | Miniature circuit-breaker |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| Rated current (In) | 16 A at 50 °C conforming to EN/IEC 60947-2 |
| Poles configuration | 4P |
| Number of protected poles | 4 |
| Breaking capacity | 30 kA Icu at 240 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 15 kA Icu at 415 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 |
| Rated service breaking capacity (Ics) | 15 kA 50 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz |
| Rated operational voltage (Ue) | 440 V AC 50/60 Hz 240 V AC 50/60 Hz phase to phase |
| Network type (AC/DC) | AC |
| Network frequency | 50/60 Hz |
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
| Parameter | Value |
|---|---|
| Curve code | D |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 12 x In +/- 20 % |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Electrical durability (cycles) | 10000 cycles conforming to EN/IEC 60947-2 |
| Mechanical durability (cycles) | 20000 cycles |
| Parameter | Value |
|---|---|
| Mounting support | 35 mm symmetrical DIN rail |
| Mounting mode | Fixed |
| Control type | Toggle |
| Terminal connection type | Tunnel type terminals1...25 mm² rigid Tunnel type terminals1...25 mm² flexible without cable end Tunnel type terminals1...25 mm² flexible with cable end |
| Terminal tightening torque | Power circuit: 2 N.m |
| Wire stripping length | Power circuit: 14 mm |
| Contact position indicator | Yes |
| Local signalling/indication | ON/OFF indication |
| Width | 72 mm |
| Height | 81 mm |
| Depth | 73 mm |
| Number of 9 mm pitches | 8 |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -30...70 °C |
| Storage ambient temperature | -40...80 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60947-2 |
| Pollution degree | 3 conforming to EN/IEC 60947-2 |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-2 |
The MGN25145 is a C60H miniature circuit breaker from the Multi9 range, a 4-pole (4P) thermal-magnetic unit with a D-curve and a 16 A rated current at 50 °C per EN/IEC 60947-2. The 16 A rating at 50 °C gives you the full current capacity in a warm panel; no derate guesswork. Breaking capacity is 30 kA Icu at 240 V AC, 15 kA at 415 V, and 10 kA at 440 V — all phase-to-phase per EN/IEC 60947-2.
Occupies 8 x 9 mm pitches (72 mm wide), 81 mm tall, 73 mm deep. Strip length is 14 mm.
The MGN25145 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at the time of quote.
The MGN25145 has a breaking capacity of 30 kA Icu at 240 V AC, 15 kA at 415 V AC, and 10 kA at 440 V AC, all phase-to-phase per EN/IEC 60947-2.
The D-curve magnetic trip is set at 12 x In (±20 %), which allows it to handle high inrush currents from motor, transformer, or lighting ballast loads without nuisance tripping.
The MGN25145 is designed and tested to EN/IEC 60947-2, the standard for low-voltage circuit breakers used in industrial applications.
