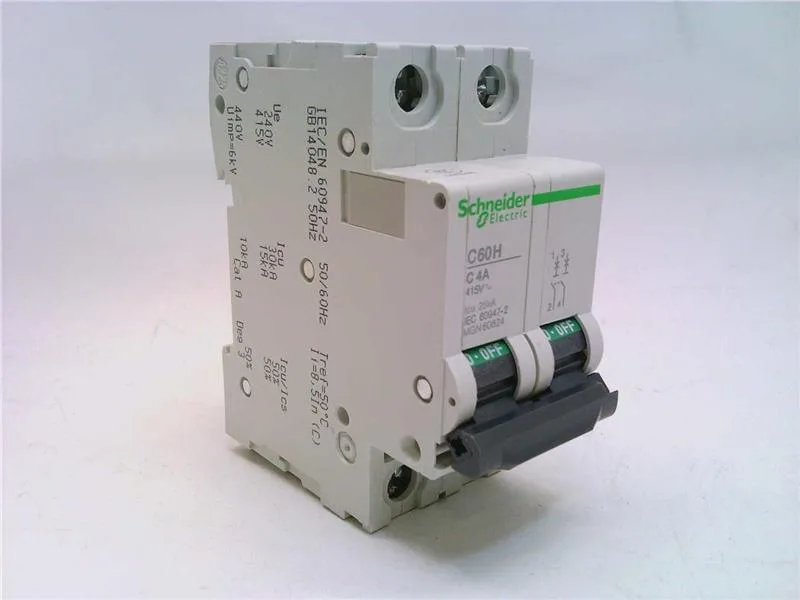

Schneider Electric MGN60624
MPNMGN60624
Obsolete
MGN60624 by MERLIN GERIN
$51.12Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | DC |
| Range of product | C60 |
| Product or component type | Miniature circuit-breaker |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz 240 V AC 50/60 Hz phase to phase 415 V AC 50/60 Hz phase to phase |
| Breaking capacity | 30 kA Icu at 240 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 15 kA Icu at 415 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz phase to phase conforming to EN/IEC 60947-2 25 kA Icu at 125 V DC phase to phase conforming to EN/IEC 60947-2 |
| Current | 4 A at 50 °C conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity | 15 kA 50 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 25 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC |
| Poles description | 2P |
| Number of protected poles | 2 |
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
| IP degree of protection | IP20 conforming to EN/IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | Power circuit: 14 mm |
| Connections - terminals | Tunnel type terminals1...25 mm² rigid Tunnel type terminals1...25 mm² flexible without cable end Tunnel type terminals1...25 mm² flexible with cable end |
| Pollution degree | 3 conforming to EN/IEC 60947-2 |
| Depth | 73 mm |
| Width | 36 mm |
| Height | 81 mm |
| Electrical durability | 10000 cycles conforming to EN/IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60947-2 |
| Range | Multi9 |
| Curve code | C |
| 9 mm pitches | 4 |
| Local signalling | ON/OFF indication |
| Device short name | C60H |
| Tightening torque | Power circuit: 2 N.m |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 8.5 x In +/- 20 % |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -30...70 °C |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
