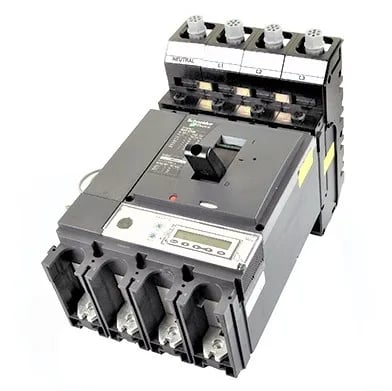

Schneider Electric MGP0324X
MPNMGP0324X
Obsolete
MGP0324X - POWERPACT4 by SQUARE D
$557.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Range of product | PowerPacT 4 |
| Product or component type | Circuit breaker |
| Voltage | 800 V |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Current | 32 A at 40 °C |
| [Ics] rated service short-circuit breaking capacity | 36 kA at 415 V AC 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 36 kA Icu at 415 V AC 50/60 Hz |
| Poles description | 4P |
| Utilisation category | Category A |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Circuit breaker mounting mode | Panel-mounted |
| Electrical durability | 50000 cycles at 440 V In/2 30000 cycles at 440 V In |
| Mechanical durability | 50000 cycles |
| Standards | BS EN 60947-2 |
| Trip unit name | TM-D |
| Trip unit rating | 32 A at 40 °C |
| Number of modules | 4 module(s)35 mm |
| Device application | Distribution |
| Product destination | 250 A panelboard 400/630 A panelboard |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to BS EN 60947-2 |
| Trip unit protection functions | LI |
| Thermal protection adjustment range | 22.4...32 A |
MPN
MGP0324X
