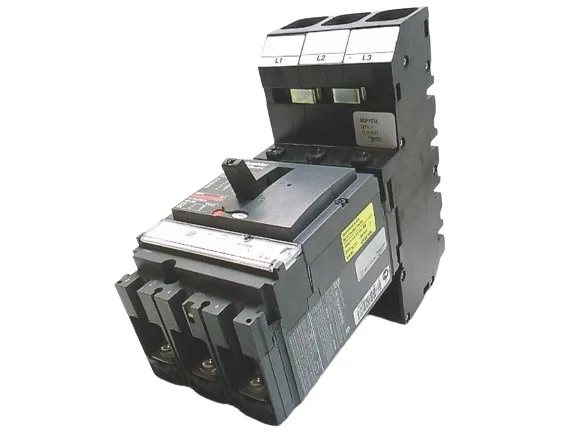

Schneider Electric MGP1003XE2
MPNMGP1003XE2
Obsolete
MGP1003XE2 by SQUARE D
$675.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | PowerPacT 4 |
| Product or component type | Circuit breaker |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Adjustable |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable |
| Voltage | 800 V |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Current | 100 A at 40 °C |
All specifications
| Parameter | Value |
|---|---|
| [Ics] rated service short-circuit breaking capacity | 36 kA at 415 V AC 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 36 kA Icu at 415 V AC 50/60 Hz |
| Poles description | 3P |
| Utilisation category | Category A |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Circuit breaker mounting mode | Panel-mounted |
| Electrical durability | 50000 cycles at 440 V In/2 30000 cycles at 440 V In |
| Mechanical durability | 50000 cycles |
| Trip unit name | MicroLogic 2.2 |
| Trip unit rating | 100 A at 40 °C |
| Number of modules | 3 module(s)35 mm |
| Device application | Distribution |
| Product destination | 250 A panelboard 400/630 A panelboard |
| Trip unit technology | Electronic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to BS EN 60947-2 |
| Trip unit protection functions | LSoI |
| Zone selective interlocking ZSI | Without |
| [Ir] long-time protection pick-up adjustment range | 40...100 A |
| [Isd] short-time protection pick-up adjustment range | 1.5...10 x Ir |
| [Ii] instantaneous protection pick-up adjustment range | 1500 A |
MPN
MGP1003XE2
