Schneider Electric MGP36600

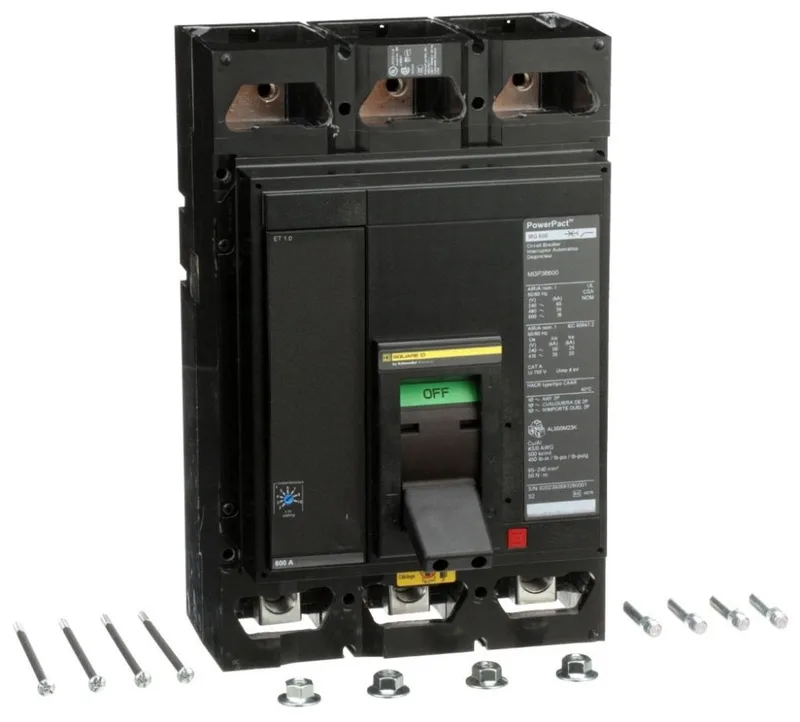

Schneider MGP36600 PowerPact M molded case circuit breaker, 600 A, 600 V

MPNMGP36600
Active

Schneider MGP36600 Molded Case Circuit Breakers.

$6,635.00 – $11,343.30Ref. price · indicative, final on quote
Schneider Electric MGP36600 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MGP36600 key specifications
ParameterValue
Control typeOperating handle
Product or component typeCircuit breaker
Voltage750 V IEC 60947-2
[Ue] rated operational voltage600 V AC 50/60 Hz UL 489
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacityAIR 65 kA 240 V AC 50/60 Hz UL 489 AIR 35 kA 480 V AC 50/60 Hz UL 489 AIR 18 kA 600 V AC 50/60 Hz UL 489 Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Line rated current600 A
Breaking capacity codeG
Continuous current rating80 %
Magnetic tripping current1200...6000 A
[Ics] rated service breaking capacity25 kA 240 V AC 50/60 Hz IEC 60947-2 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Power wire stripping length1.0 in (25 mm)

All specifications

MGP36600 additional specifications
ParameterValue
Network frequency50/60 Hz
Poles3P
Utilisation categoryCategory A
IP degree of protectionIP40
Mounting modeUnit mount lug)
Mounting supportLug
Terminal identifierAL800M23K
Electrical connectionTerminal nut, line Lugs, load
Pollution degree3 IEC 60947-1
Operating altitude< 6561.68 ft (2000 m) without derating 13123.36 ft (4000 m) with derating
ColorBlack
Depth8.05 in (204.47 mm)
Width8.27 in (210.06 mm)
Height12.86 in (326.64 mm)
StandardsUL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2
RangePowerPact
CategoryUS10DE201205
AWG gauge3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Quality labelsCE
Trip unit nameET 1.0
Number of slots2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 voltage release MN or MX plug-in)
Local signalling1 trip indicator green)
Quantity per set1
Tightening torque442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (3 x AWG 3/0...3 x 500 kcmil)
Device applicationDistribution
Trip unit technologyElectronic, basic, ET 1.0,
Suitability for isolationYes IEC 60947-2
Circuit breaker applicationHACR rated
Long time pick-up adjustment range300...800 A
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

Overview

The MGP36600 is a Schneider PowerPact M molded case circuit breaker rated for 600 A switching current at 600 V, 3-pole, with an ET 1.0 electronic trip unit. It carries UL, CSA, NOM, and IEC 60947-2 certifications and is sealed to IP40.
