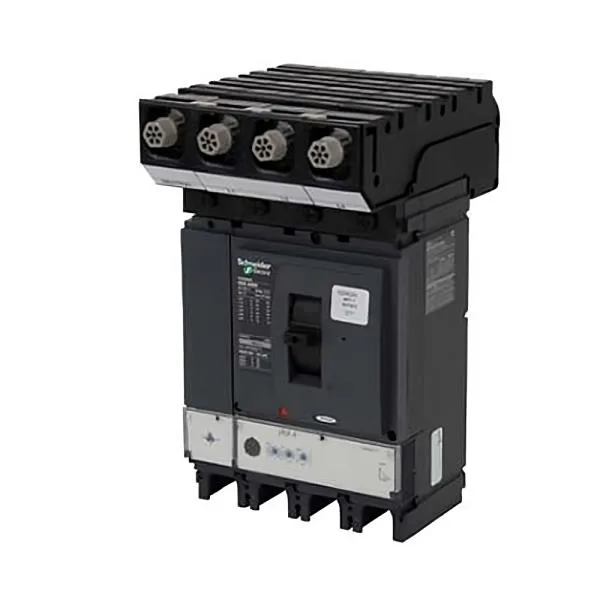

Schneider Electric MGP4004XFO
MPNMGP4004XFO
Obsolete
MGP4004XFO - BREAKER FRAME by SQUARE D
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | PowerPacT 4 |
| Product or component type | Basic frame |
| Voltage | 800 V |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Current | 400 A |
| [Ics] rated service short-circuit breaking capacity | 50 kA at 415 V AC 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 50 kA Icu at 415 V AC 50/60 Hz |
| Poles description | 4P |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to EN/IEC 62262 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Circuit breaker mounting mode | Panel-mounted |
| Pollution degree | 3 conforming to EN/IEC 60664-1 |
| Operating altitude | 0...2000 m without derating 2000...5000 m with derating |
| Electrical shock protection class | Class II |
| Depth | 110 mm |
| Width | 185 mm |
| Color | Grey |
| Height | 255 mm |
| Electrical durability | 12000 cycles at 440 V In/2 6000 cycles at 440 V In |
| Mechanical durability | 15000 cycles |
| Standards | BS EN 60947-2 |
| Number of modules | 6 module(s)35 mm |
| Safety category | N |
| Device application | Distribution |
| Product destination | 400/630 A panelboard |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to BS EN 60947-2 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
MGP4004XFO
