Schneider Electric MGP6303NAX
MPNMGP6303NAX
Obsolete

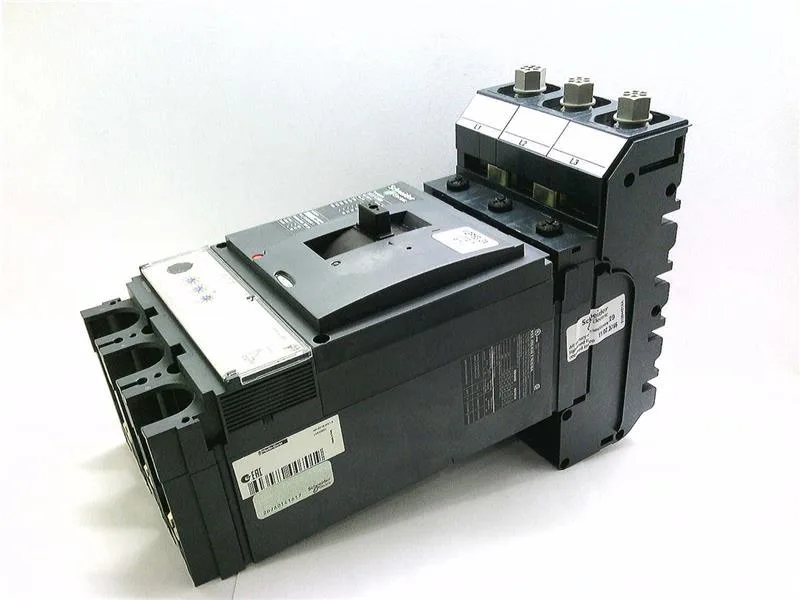

MGP6303NAX - 630 AMP by MERLIN GERIN
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | PowerPacT 4 |
| Product or component type | Switch disconnector |
| Voltage | 800 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 6000 A during 1 s 6000 A during 3 s 2320 A during 20 s |
| Current | 630 A |
| [Icm] rated short-circuit making capacity | 8.5 kA peak |
| Poles description | 3P |
| Utilisation category | AC-22A AC-23A |
| IK degree of protection | IK07 conforming to EN/IEC 62262 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| Mounting support | Backplate |
| Pollution degree | 3 conforming to EN/IEC 60664-1 |
| Electrical shock protection class | Class II |
| Depth | 110 mm |
| Width | 140 mm |
| Height | 255 mm |
| Electrical durability | 6000 cycles 440 V In/2 3000 cycles 440 V In |
| Mechanical durability | 15000 cycles |
| Standards | BS EN 60947-3 |
| Range | PowerPact |
| Device application | Isolation |
| Product destination | 400/630 A panelboard |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to BS EN 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
MGP6303NAX
