Schneider Electric MGV630302
MPNMGV630302
Obsolete

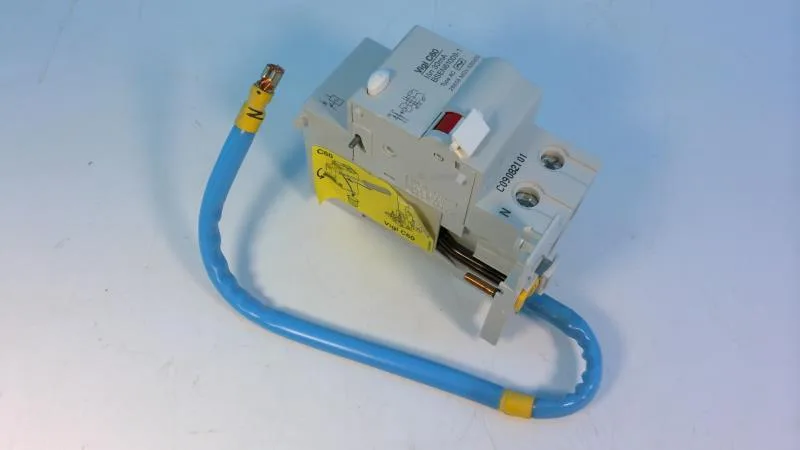

MGV630302 - CIRCUIT BREAKER by SCHNEIDER ELECTRIC
$153.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Range of product | C60 |
| Voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 127...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Current | 63 A |
| Residual current tripping technology | Voltage dependent |
| Network frequency | 50/60 Hz |
| Poles description | 2P |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | 14 mm |
| Connections - terminals | Tunnel type terminals0.5...25 mm² flexible Tunnel type terminals0.5...35 mm² rigid |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 3 conforming to IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 74 mm |
| Width | 72 mm |
| Height | 87 mm |
| Mechanical durability | 20000 cycles |
| Standards | IEC 60947-2 |
| 9 mm pitches | 4 |
| Tropicalisation | 2 conforming to IEC 60947-2 |
| Neutral position | Left |
| Device short name | Vigi C60 |
| Tightening torque | 3.5 N.m |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | Class AC |
| Ambient air temperature for storage | -40...70 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -5...60 °C |
MPN
MGV630302
