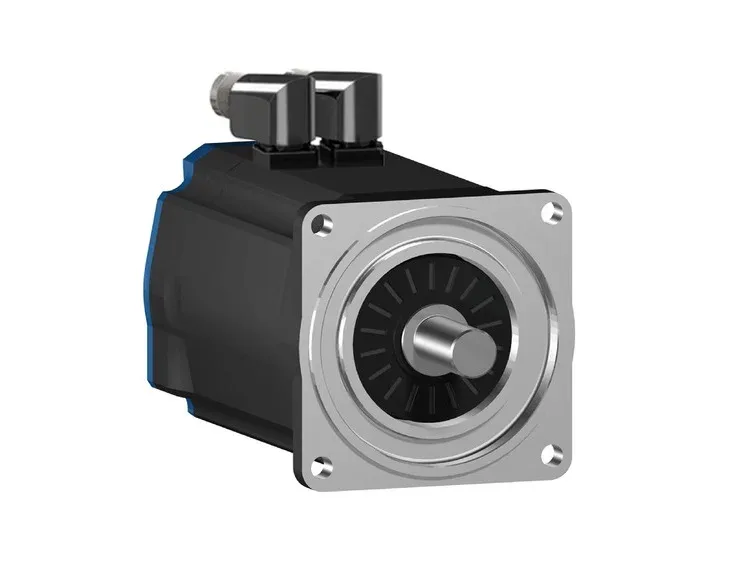

Schneider MH31001P12F2200 1.27 kW Motor
MPNMH31001P12F2200
Obsolete
MH31001P12F2200 - 1.27KW by TELEMECANIQUE
$2,059.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | Multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 10.68 A |
| Continuous stall current | 3.15 A |
| Continuous power | 1520 W |
| Brake pull-in power | 12 W |
| Nominal output power | 0.35 W, 115 V 0.67 W, 230 V 1.26 W, 400 V 1.52 W, 480 V |
| Number of motor poles | 10 |
| Phases | Three phase |
| IP degree of protection | IP65 standard |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 0.2 in (6 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 6.7 in (170.3 mm) |
| Category | US1PC5218359 |
| Shaft end | Parallel key |
| Second shaft | Without second shaft end |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | With |
| Nominal speed | 1000 rpm LXM52 3.07 mA, 115 V, single phase 2000 rpm LXM52 2.99 mA, 230 V, single phase 4000 rpm LXM52 2.83 mA, 400 V, three phase 5000 rpm LXM52 2.75 mA, 480 V, three phase 1000 rpm LXM62 3.07 mA, 115 V, single phase 2000 rpm LXM62 2.99 mA, 230 V, single phase 4000 rpm LXM62 2.83 mA, 400 V, three phase 5000 rpm LXM62 2.75 mA, 480 V, three phase |
| Rotor inertia | 3.68 kg.cm² |
| Holding torque | 48.7 lbf.in (5.5 N.m) |
| Nominal torque | 29.2 lbf.in (3.3 N.m) LXM52 3.07 mA, 115 V, three phase 28.3 lbf.in (3.2 N.m) LXM52 2.99 mA, 230 V, single phase 26.6 lbf.in (3 N.m) LXM52 2.83 mA, 400 V, three phase 25.7 lbf.in (2.9 N.m) LXM52 2.75 mA, 480 V, three phase 29.2 lbf.in (3.3 N.m) LXM62 3.07 mA, 115 V, single phase 28.3 lbf.in (3.2 N.m) LXM62 2.99 mA, 230 V, single phase 26.6 lbf.in (3 N.m) LXM62 2.83 mA, 400 V, three phase 25.7 lbf.in (2.9 N.m) LXM62 2.75 mA, 480 V, three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.09 N.m/A 248 °F (120 °C) |
| Sizing reference | MH31001P |
| Back emf constant | 70.3 V/krpm |
| Device short name | MH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 95.6 lbf.in (10.8 N.m), 115...480 V, three phase |
| Stator inductance | 14.9 mH |
| Stator resistance | 4.12 Ohm |
| Temperature copper hot | 275 °F (135 °C) |
| Continuous stall torque | 30.09 lbf.in (3.4 N.m), 115...480 V, three phase |
| Maximum radial force fr | 900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm 570 N 4000 rpm 530 N 5000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 128 periods |
| Stator electrical time constant | 4.5 ms |
MPN
MH31001P12F2200
