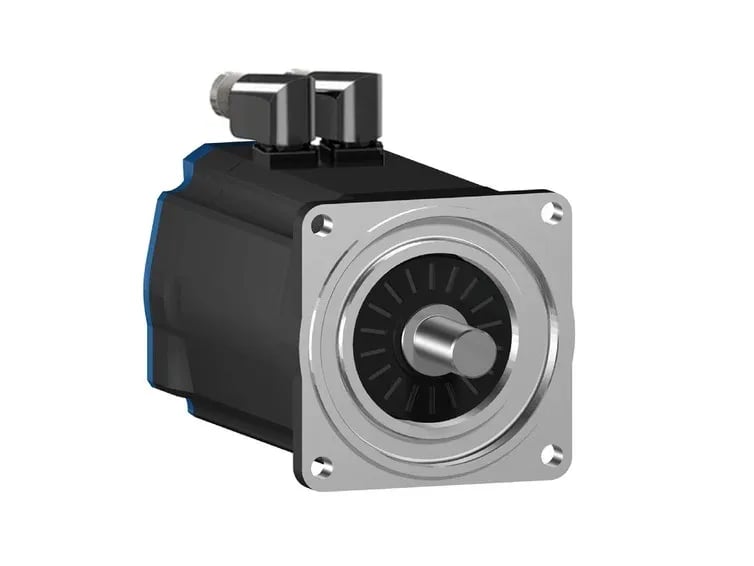

Schneider MH31003P12F2200 Servo Motor
MPNMH31003P12F2200
Active
MH31003P12F2200 - DIA INé by SCHNEIDER ELECTRIC
$1,869.44Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | Multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 26.71 A |
| Output current 3s peak | 26.71 A |
| Continuous stall current | 7.69 A |
| Continuous power | 3270 W |
| Brake pull-in power | 18 W |
| Nominal output power | 0.88 W, 115 V 2 W, 230 V 2.85 W, 400 V 3.27 W, 480 V |
| Number of motor poles | 5.0 |
| Phases | Three phase |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP65 standard |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 0.2 in (6 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 9.2 in (234.3 mm) |
| Inertia | 0.93 kg.cm² of brake 9.37 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Parallel key |
| Second shaft | Without second shaft end |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | With |
| Nominal speed | 4000 rpm |
| Rotor inertia | 10.3 kg.cm² |
| Holding torque | 79.7 lbf.in (9 N.m) |
| Nominal torque | 74.79 lbf.in (8.45 N.m) LXM52 7.3 mA, 115 V, three phase 67.53 lbf.in (7.63 N.m) LXM52 6.7 mA, 230 V, single phase 60.2 lbf.in (6.8 N.m) LXM52 6.07 mA, 400 V, three phase 55.32 lbf.in (6.25 N.m) LXM52 5.64 mA, 480 V, three phase 74.79 lbf.in (8.45 N.m) LXM62 7.3 mA, 115 V, single phase 67.53 lbf.in (7.63 N.m) LXM62 6.7 mA, 230 V, single phase 60.2 lbf.in (6.8 N.m) LXM62 6.07 mA, 400 V, three phase 55.32 lbf.in (6.25 N.m) LXM62 5.64 mA, 480 V, three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.17 N.m/A 248 °F (120 °C) |
| Sizing reference | MH31003P |
| Back emf constant | 77.95 V/krpm |
| Device short name | MH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 239.0 lbf.in (27 N.m), 115...480 V, three phase |
| Stator inductance | 5.23 mH |
| Stator resistance | 1.08 Ohm |
| Temperature copper hot | 275 °F (135 °C) |
| Continuous stall torque | 79.7 lbf.in (9 N.m), 115...480 V, three phase |
| Maximum radial force fr | 1050 N 1000 rpm 830 N 2000 rpm 730 N 3000 rpm 660 N 4000 rpm 610 N 5000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 128 periods |
| Stator electrical time constant | 6.3 ms |
