Schneider Electric NJJF36250TW
MPNNJJF36250TW
Active

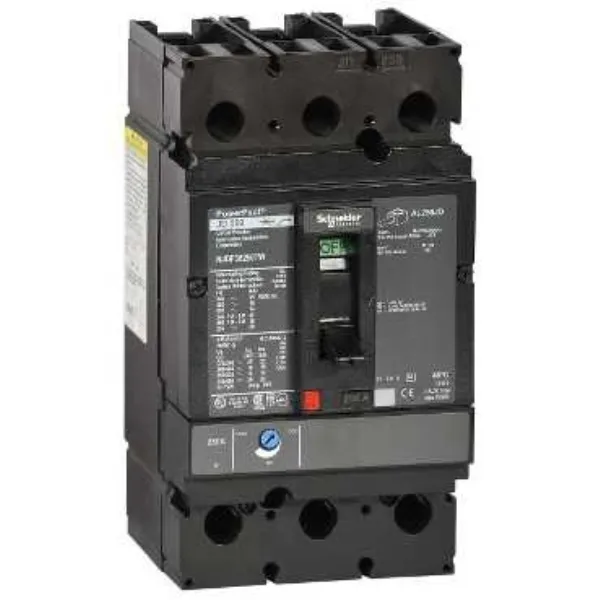

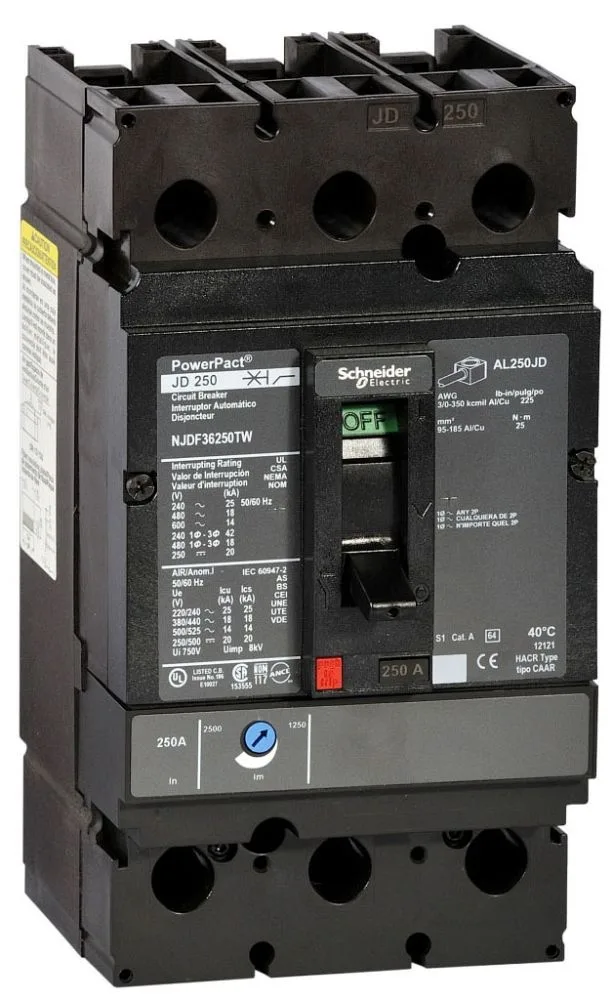

Square D NJJF36250TW Molded Case Circuit
$871.22Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Display type | 3 LEDs |
| Range of product | PowerPact multistandard |
| Product or component type | Circuit breaker |
| Long time pick-up adjustment type ir | Fixed |
| Short-time pick-up adjustment type isd | Adjustable |
| Voltage | 750 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 525 V AC 50/60 Hz IEC 60947-2 690 V AC 50/60 Hz IEC 947-2 600 V AC 50/60 Hz UL 489 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | Icu 100 kA 220/240 V - AC IEC 947-2 Icu 65 kA 380/415 V - AC IEC 947-2 Icu 65 kA 440/480 V - AC IEC 947-2 Icu 25 kA 500/525 V - AC IEC 947-2 100 kA 240 V - AC UL 489 65 kA 480 V - AC UL 489 25 kA 600 V - AC UL 489 |
| Current | 250 A 104 °F (40 °C) |
| Breaking capacity code | JJ |
All specifications
| Parameter | Value |
|---|---|
| [Ics] rated service breaking capacity | Ics 100 kA 220/240 V - AC IEC 947-2 Ics 65 kA 380/415 V - AC IEC 947-2 Ics 65 kA 440/480 V - AC IEC 947-2 Ics 25 kA 500/525 V - AC IEC 947-2 |
| Poles description | 3P |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Unit mount |
| Mounting support | DIN rail Flush Backplate |
| Connection pitch | 1.8 in (45 mm) |
| Electrical connection | Terminal nut, line side Terminal nut, load side |
| Pollution degree | 3 IEC 60947-1 3 IEC 60664-1 |
| Depth | 3.4 in (86 mm) |
| Width | 4.09 in (104 mm) |
| Height | 7.5 in (191 mm) |
| Electrical durability | 1000 cycles |
| Mechanical durability | 5000 cycles |
| Standards | CSA C22.2 No 5 W-C-375B/GEN NMX J-266 NEMA AB1 IEC 60947-2 UL 489 |
| Range | PowerPact |
| Trip unit name | TM |
| Local signalling | ON/OFF indication |
| Trip unit rating | 250 A |
| Device short name | J-Frame |
| Tightening torque | 221.3 lbf.in (25 N.m) 0.1...0.3 in² (95...185 mm²) AWG 3/0...350 kcmil) |
| Device application | Distribution |
| Overvoltage category | II |
| Trip unit technology | Thermal-magnetic |
| Provision for padlocking | Non padlockable |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Trip unit protection functions | Basic protection |
| Long time pick-up adjustment range | 1 In |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | 104 °F (40 °C) |
| [Isd] short-time pick-up adjustment range | 5...10 x In |
