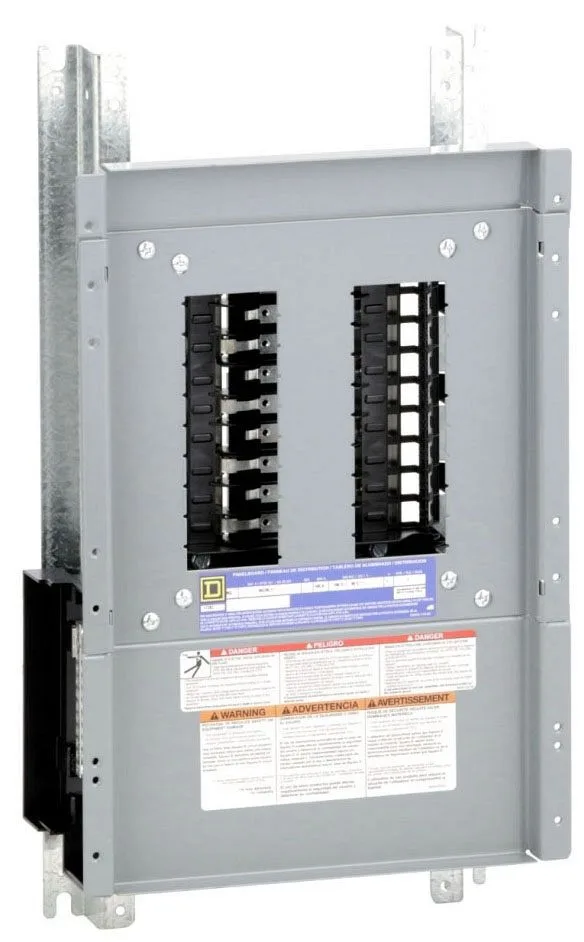

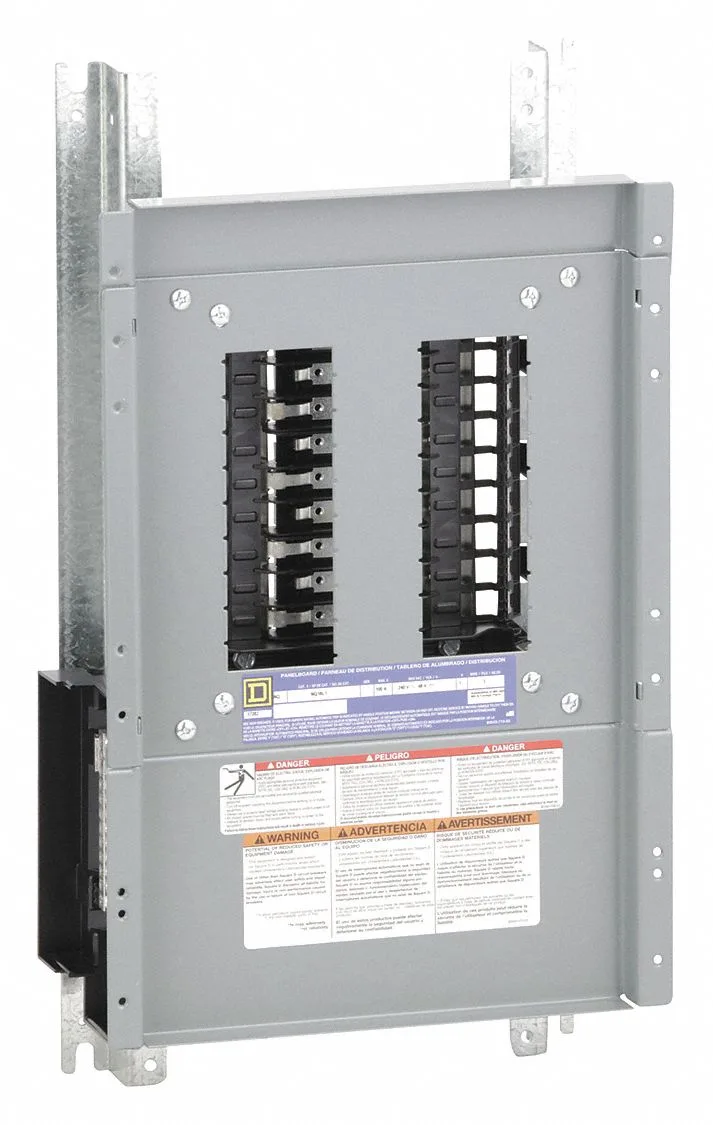

Schneider Electric NQ18L1
MPNNQ18L1
Active
Panel Board, Interior, 100A, 18 Space, NQ Type, 240VAC, 48VDC|Panel Board, Interior, 100 Amp, 18 Space, NQ Type, 240 Volt AC, 48 Volt DC, Aluminum Bus
$765.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Interiors |
| Panelboard type | Main lugs |
| Branch circuit breaker type | QOB QOB-VH QHB |
| Voltage rating | 240 V AC 48 V DC |
| Line rated current | 100 A |
| [Iu] rated interrupted current | 10 kA 22 kA 65 kA |
| Phases | 1 phase 3 wires |
| Enclosure nominal depth | 5.75 in (146.05 mm) NEMA 1 6.5 in (165.1 mm) NEMA 3R/12 |
| Enclosure nominal width | 20 in (508 mm) |
| Enclosure nominal height | 26 in (660.4 mm) |
| Width | 10.44 in (265.18 mm) |
| Height | 21 in (533.4 mm) |
| Busbar material | Aluminium |
| Standards | CSA UL |
| Category | US1PE1A09151 |
| Number of spaces | 18 |
| Tightening torque | 40.005...50.007 lbf.in (4.52...5.65 N.m) 0.02...0.10 in² (13.30...67.43 mm²) (AWG 6...AWG 2/0) 100.01 lbf.in (11.3 N.m) 0.02...0.10 in² (13.30...67.43 mm²) (AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02...0.3 in² (13.30...177.3 mm²) (AWG 6...350 kcmil) 274.99 lbf.in (31.07 N.m) 0.02...0.2 in² (13.30...126.7 mm²) (AWG 6...250 kcmil) 274.99 lbf.in (31.07 N.m) 0.2...0.2 in² (107.2...152 mm²) (AWG 4...300 kcmil) |
MPN
NQ18L1
