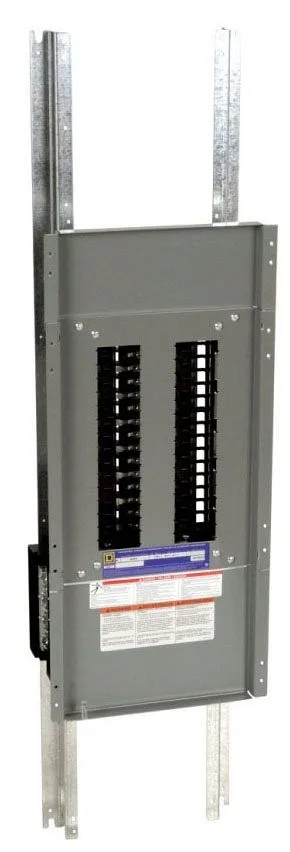

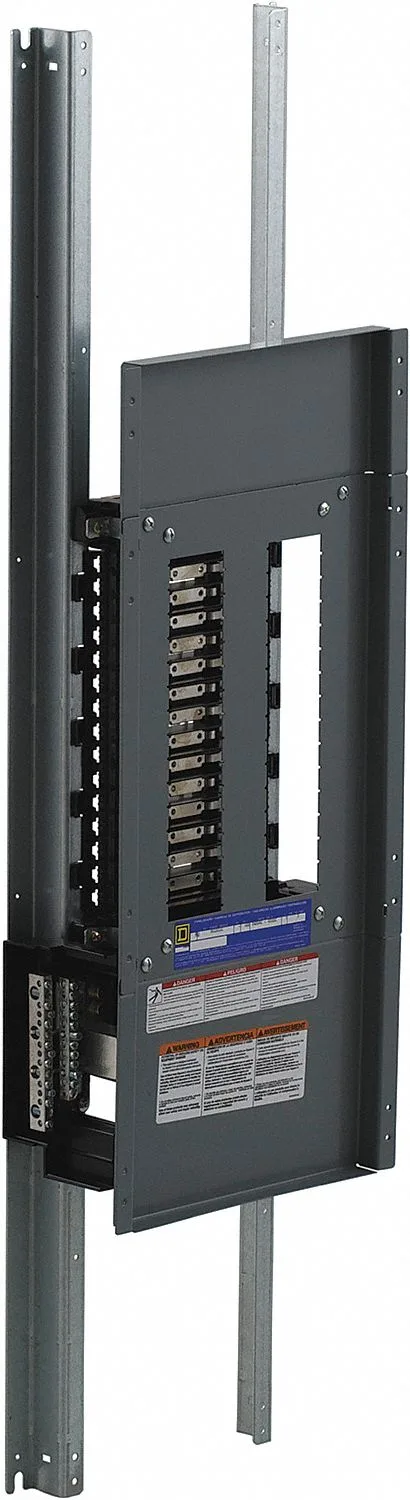

Schneider Electric NQ30L6C
MPNNQ30L6C
Active
Panelboard interior, NQ, main lugs, 600A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC|Panelboard interior, NQ, main lugs, 600A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
$1,810.00 – $1,982.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Panelboard type | Main lugs |
| Branch circuit breaker type | QOB QOB-VH QHB |
| Voltage rating | 240 V AC 48 V DC |
| Line rated current | 600 A |
| [Iu] rated interrupted current | 10 kA 22 kA 65 kA |
| Phases | 1 phase 3 wires |
| Enclosure nominal depth | 5.75 in (146.05 mm) NEMA 1 6.5 in (165.1 mm) NEMA 3R/12 |
| Enclosure nominal width | 20 in (508 mm) |
| Enclosure nominal height | 62 in (1574.8 mm) |
| Width | 10.44 in (265.18 mm) |
| Height | 45 in (1143 mm) |
| Busbar material | Copper |
| Standards | UL CSA |
| Category | US1PE1A09151 |
| Number of spaces | 30 |
| Tightening torque | 274.99...300.04 lbf.in (31.07...33.90 N.m) 0.08...0.6 in² (53.48...380 mm²) (AWG 1/0...750 kcmil) 274.99...300.04 lbf.in (31.07...33.90 N.m) 0.08...0.3 in² (53.48...177.3 mm²) (AWG 1/0...350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08...0.6 in² (53.48...380 mm²) (AWG 1/0...750 kcmil) 549.98 lbf.in (62.14 N.m) 0.08...0.2 in² (53.48...152 mm²) (AWG 1/0...300 kcmil) 375.006 lbf.in (42.37 N.m) 0.08...0.6 in² (53.48...380 mm²) (AWG 1/0...750 kcmil) 375.006 lbf.in (42.37 N.m) 0.08...0.2 in² (53.48...152 mm²) (AWG 1/0...300 kcmil) |
MPN
NQ30L6C
