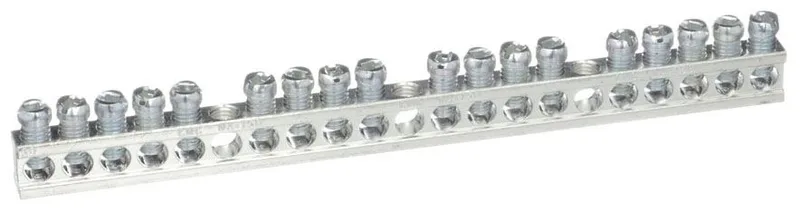

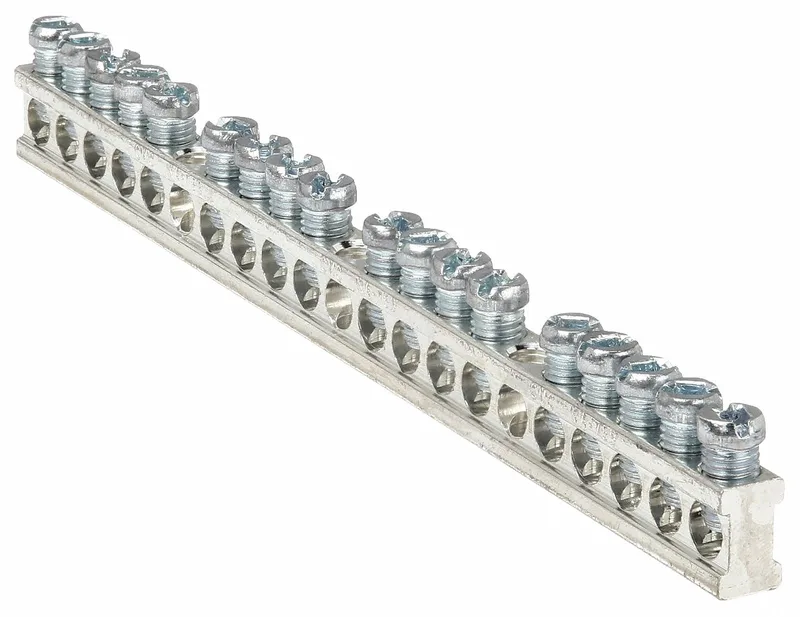

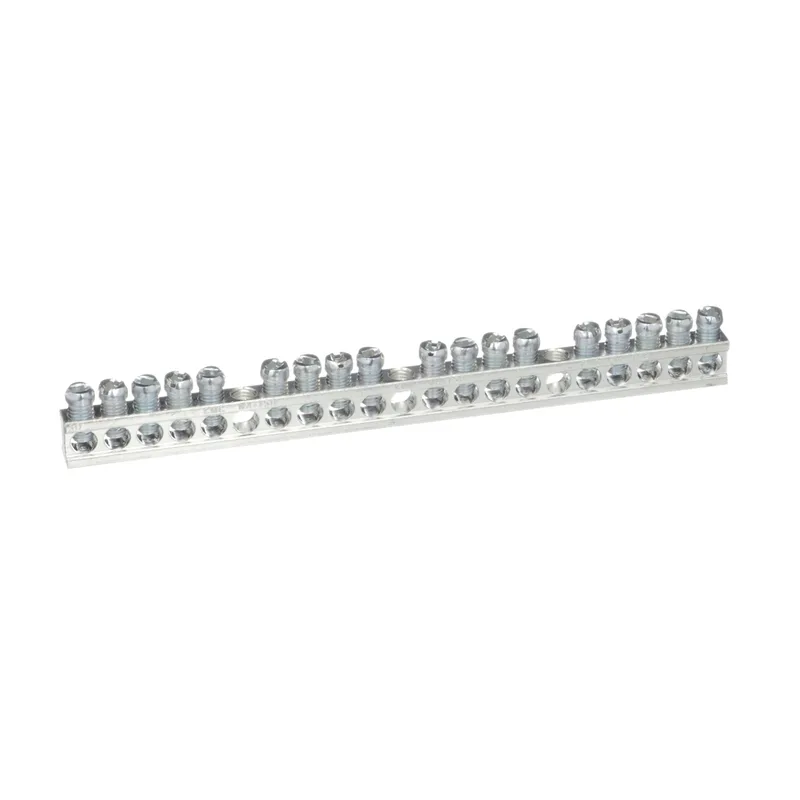

Schneider Electric PK18GTA
MPNPK18GTA
Active
LOAD CENTER EQUIPMENT GROUND BAR ASSY|Square D,LOAD CENTER EQUIPMENT GROUND BAR ASSY,Load Center Grounding Bar Assembly,Load Centers,PK,QO
$12.85 – $19.53Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Bar |
| Device mounting | Direct mounting back of enclosure |
| Wire AWG | AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium |
| Number of connectors | 18 |
| Depth | 0.312 in (7.925 mm) |
| Height | 0.437 in (11.100 mm) |
| Category | US1DE3A00102 |
| Bar length | 6.6 in (167 mm) |
| Product line | QO |
| Tightening torque | 30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium |

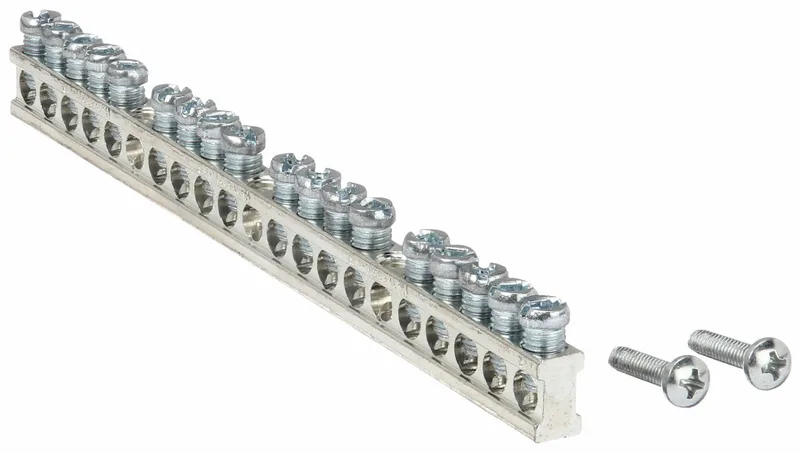

| Provided equipment | 2 screw |
| Maximum length of segment | 3.1 in (80 mm) |
MPN
PK18GTA
