Schneider Electric PKY32F435
MPNPKY32F435
Active

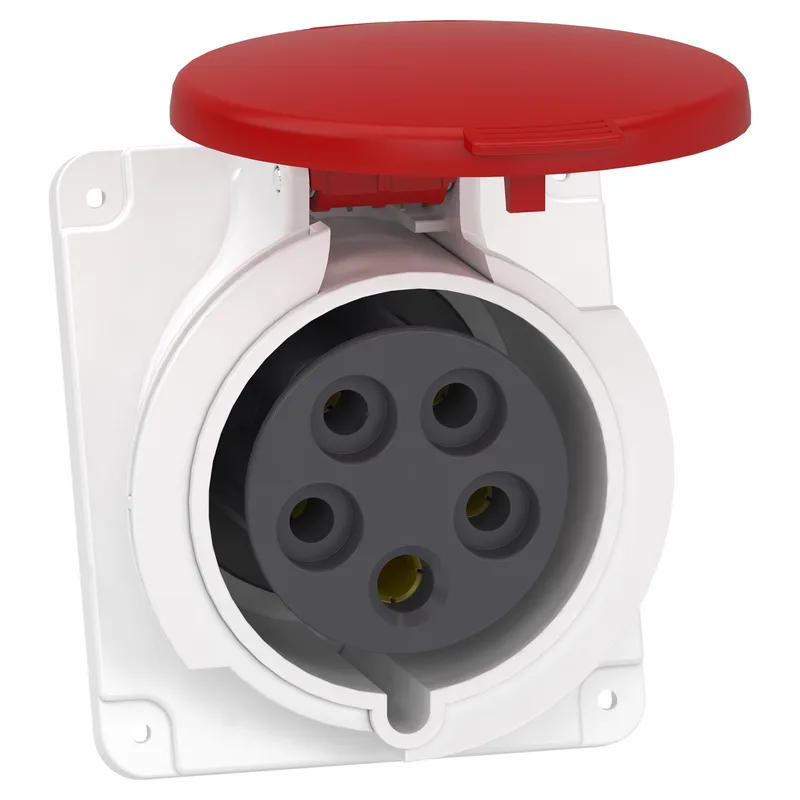

PratiKa socket - fast - angled - 32A - 3P + N + E - 380...415 V AC - panel
$9.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Socket |
| Voltage colour | Red |
| [Ue] rated operational voltage | 380...415 V |
| Current | 32 A |
| Network frequency | 50/60 Hz |
| Poles description | 3P + N + E |
| IK degree of protection | IK08 conforming to EN 62262 |
| IP degree of protection | IP44 conforming to IEC 60529 |
| Mounting mode | Panel-mounted |
| Cable cross section | 2.5...6 mm² |
| Connections - terminals | Fast connection |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Depth | 119 mm |
| Width | 90 mm |
| Color | Grey (RAL 7035) |
| Height | 100 mm |
| Base dimension | 90 x 100 mm |
| Product weight | 0.272 kg |
| Contacts material | Sleeves: brass |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Standards | IEC 60309-2 IEC 60309-1 |
| Outlet standard | Industrial |
| Range | Mureva |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Ground lug clockwise position | 6 h |
| Plug, socket, control station shape | Angled |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
MPN
PKY32F435
