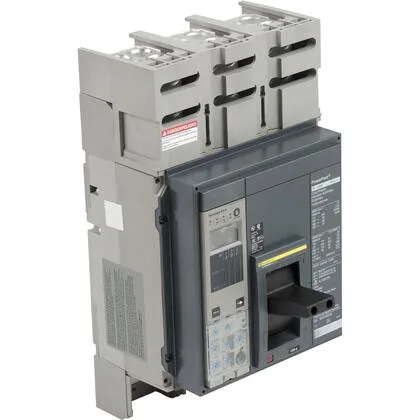

Schneider Electric PLM34120CU44A
MPNPLM34120CU44A
Active
MOLDED CASE CIRCUIT BREAKER 480V 1200A|MOLDED CASE CIRCUIT BREAKER 480V 1200A
$2,608.70Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Product or component type | Circuit breaker |
| Voltage | 750 V IEC 60947-2 |
| [Ue] rated operational voltage | 480 V AC 50/60 Hz UL 489 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | AIR 125 kA 240 V AC 50/60 Hz UL 489 AIR 100 kA 480 V AC 50/60 Hz UL 489 AIR 25 kA 600 V AC 50/60 Hz UL 489 Icu 125 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 85 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 1200 A |
| Breaking capacity code | L |
| Continuous current rating | 100 % |
| [Ics] rated service breaking capacity | 65 kA 240 V AC 50/60 Hz IEC 60947-2 45 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Power wire stripping length | 1.2 in (30 mm) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 3P |
| IP degree of protection | Front cover IP40 |
| Mounting mode | Unit mount lug) |
| Mounting support | Lug |
| Terminal identifier | AL1200P25K |
| Electrical connection | Lugs, line Terminal nut, load |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | < 6561.68 ft (2000 m) without derating 13123.36 ft (4000 m) with derating |
| Depth | 8.05 in (204.47 mm) |
| Width | 8.27 in (210.06 mm) |
| Height | 16.16 in (410.46 mm) |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2 |
| Range | PowerPact |
| Category | US10DE201215 |
| AWG gauge | 4 x AWG 3/0...500 kcmil aluminium/copper |
| Quality labels | CE |
| Trip unit name | MicroLogic 6.0 A |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in) |
| Local signalling | Overload 1 trip indicator green) 1 trip indicator green) Trip causes 1 trip indicator green) |
| Quantity per set | 1 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (4 x AWG 3/0...500 kcmil) 8.9...11.5 lbf.in (1.0...1.3 N.m) |
| Device application | Distribution |
| Trip unit technology | Electronic, ammeter, MicroLogic 6.0 A, LSIG |
| Circuit breaker application | HACR rated |
| Long time pick-up adjustment range | 0.4...1 x Ir |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
PLM34120CU44A
