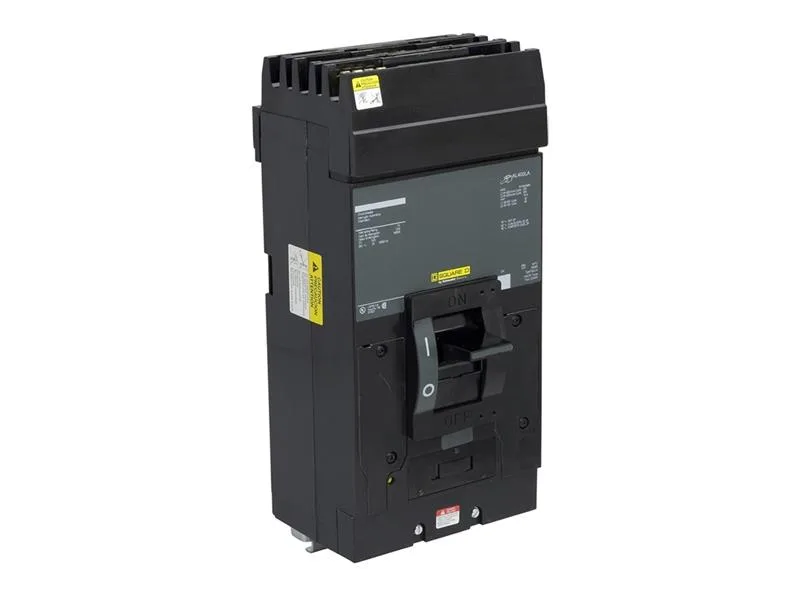

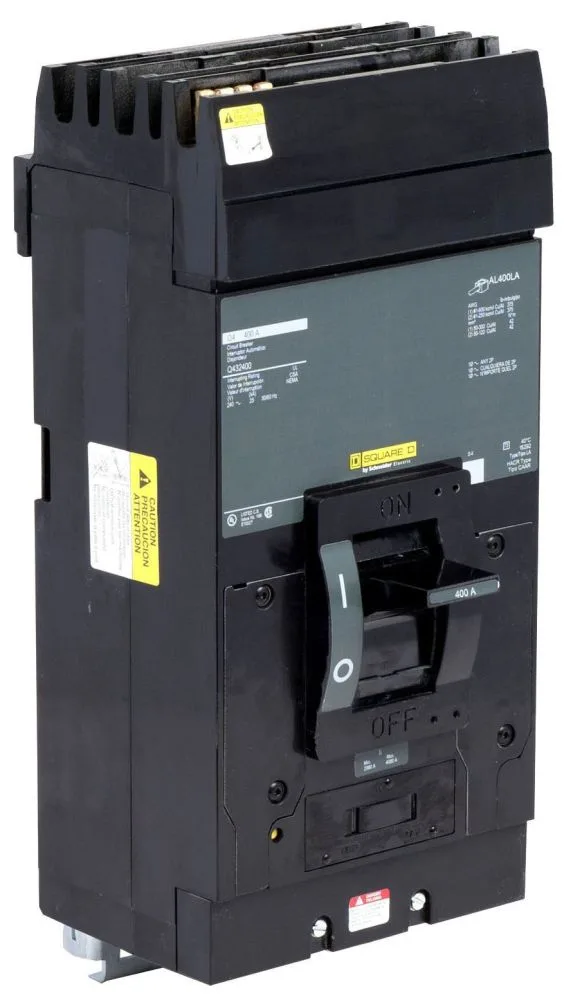

Schneider Electric Q432400
MPNQ432400
Active
MOLDED CASE CIRCUIT BREAKER 240V 400A|Square D,MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,240 V AC,25 kA at 240 V AC,3P,400 A,400 A,Q4-Frame,UL Listed,circuit breaker,thermal-magnetic,unit mount
$2,748.89 – $4,210.23Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Circuit breaker |
| Line rated current | 400 A |
| Magnetic hold current | 2000 A |
| Breaking capacity code | Q4 |
| Magnetic tripping current | 4000 A |
| Poles | 3P |
| Mounting mode | I-Line |
| Terminal identifier | AL400LA |
| Electrical connection | Lugs, load I-Line connection, line |
| Depth | 5.84 in (148.34 mm) |
| Width | 6 in (152.4 mm) |
| Height | 11 in (279.4 mm) |
| Certifications | UL Listed CSA |
| Category | US10DE201038 |
| Tightening torque | 115.06 lbf.in (13 N.m) 0.07...0.5 in² (42...304 mm²) (AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07...0.2 in² (42...127 mm²) (AWG 1...250 kcmil) |
| Trip unit technology | Thermal-magnetic |
MPN
Q432400
