Schneider Electric QGM32200TN
MPNQGM32200TN
Active

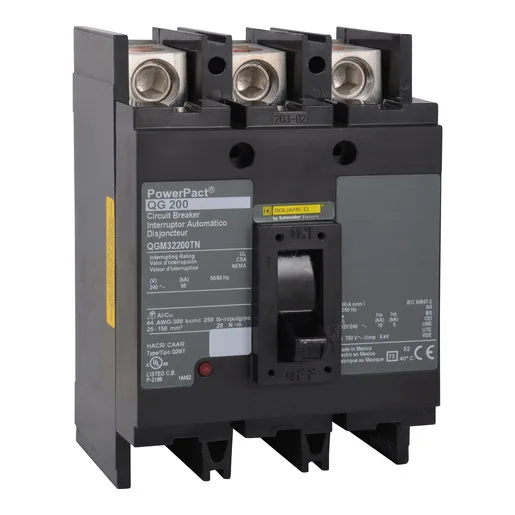

SQUARE D QGM32200TN: MOLDED CASE CIRCUIT BREAKER 240V 200A
$2,260.00 – $3,738.51Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Operating handle |
| Product or component type | Circuit breaker |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz UL |
| [Uimp] rated impulse withstand voltage | 8 kV UL |
| Breaking capacity | 65 kA 120/208 V AC 50/60 Hz UL 65 kA 240 V AC 50/60 Hz UL |
| Line rated current | 200 A |
| Magnetic hold current | 1200 A |
| Breaking capacity code | G |
| Continuous current rating | 80 % |
| Magnetic tripping current | 2400 A |
| Power wire stripping length | 0.9 in (22 mm) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 3P |
| Utilisation category | Category A |
| Mounting mode | Unit mount lug) |
| Mounting support | Lug |
| Electrical connection | Lugs, line Terminal nut, load |
| Depth | 3.93 in (99.82 mm) |
| Width | 4.5 in (114.3 mm) |
| Height | 6.47 in (164.34 mm) |
| Mechanical durability | 1000 cycles loaded 5000 cycles no load |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 |
| Range | PowerPact |
| Category | US1DE2A00187 |
| Local signalling | 1 trip indicator green) |
| Tightening torque | 247.8 lbf.in (28 N.m) 0.04...0.2 in² (25...150 mm²) (AWG 4...300 kcmil) |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Circuit breaker application | HACR rated |
| Ambient air temperature for operation | 104...158 °F (40...70 °C) |
MPN
QGM32200TN
