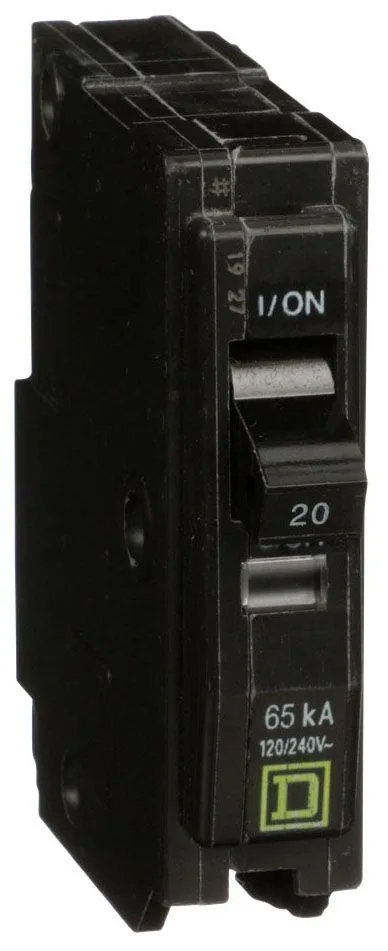

Schneider Electric QH120
MPNQH120
Active
Breaker, Miniature, 1P, 20A, 120/240VAC, 65kAIC, Type QO, Plug On|Breaker, Miniature, 1-Pole, 20 Amp, 120/240 Volt AC, 65 kAIC, Type QO, Plug On
$78.62 – $229.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Plug-in |
| Circuit breaker type | Standard |
| Voltage rating | 120/240 V AC 120 V AC |
| Current rating | 20 A |
| Poles | 1P |
| Wire AWG | AWG 14...AWG 8 copper or aluminium |
| Electrical connection | Pressure plate |
| Depth | 2.9 in (74 mm) |
| Width | 0.7 in (19 mm) |
| Height | 3.0 in (76 mm) |
| Certifications | UL Listed CSA |
| Range | QO |
All specifications
| Parameter | Value |
|---|---|
| Product | Miniature circuit-breaker |
| Ratings | HACR and Switching Duty rated |
| Category | US1DE2A00926 |
| Ambient rating | 104 °F (40 °C) |
| Interrupt rating | 65 kA 120/240 V AC 65 kA 120 V AC |
| Tightening torque | 40.7 lbf.in (4.6 N.m) |
| Number of panel spaces | 1 |
MPN
QH120
