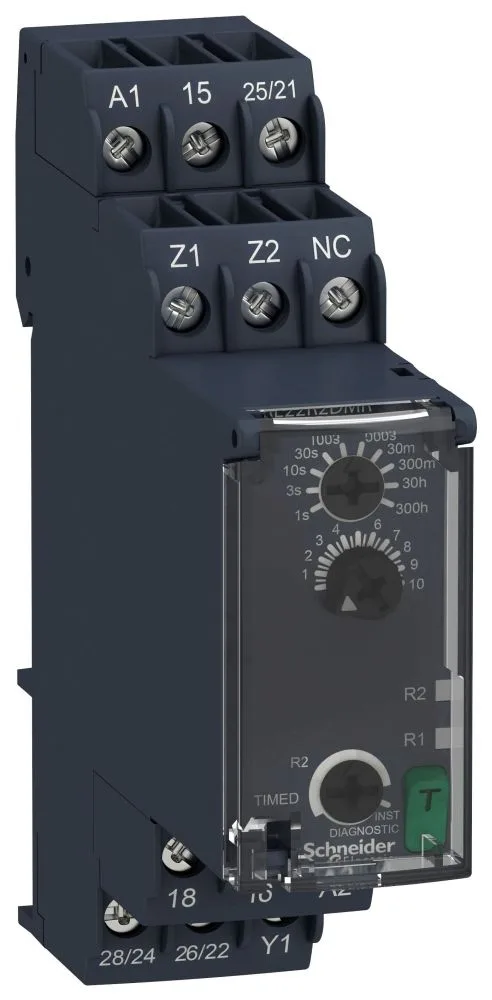

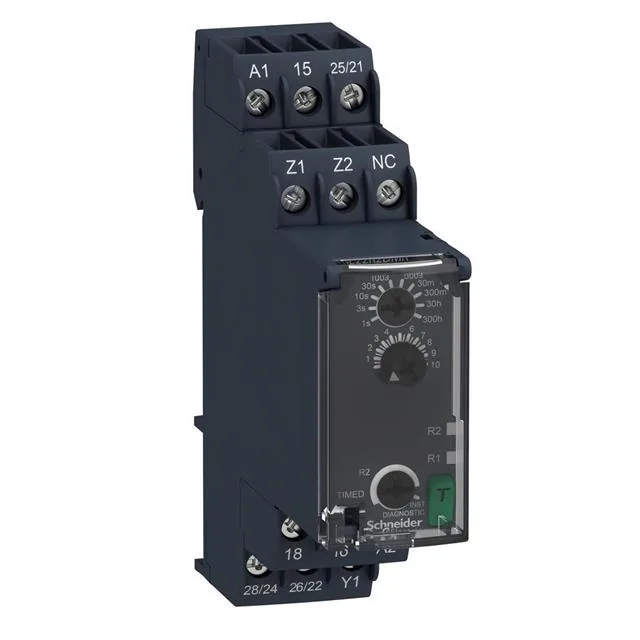

Schneider Electric RE22R2DMR
MPNRE22R2DMR
Obsolete
HARMONY, MODULAR TIMING RELAY, 8
$55.00 – $102.38Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary knob Diagnostic button Potentiometer external |
| Time delay type | Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) Symmetrical flashing - Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart |
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Contacts type and composition | 1 C/O timed contact, cadmium free 1 C/O timed or instantaneous contact, cadmium free |
| Voltage drift | +/- 0.2 %/V |
| Voltage range | 0.85...1.1 Us |
| Release input voltage | <= 2.4 V |
| Maximum switching voltage | 250 V AC |
| Supply voltage | 24...240 V AC/DC 50/60 Hz |
| Voltage | 5 kV 1.2...50 µs IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Nominal output current | 8 A |
| Maximum switching current | 8 A |
| Minimum switching current | 10 mA 5 V DC |
| Power on delay | 100 ms |
| Power consumption in | 1.5 W 240 V DC |
| Supply frequency | 50...60 Hz +/- 5 % |
| IP degree of protection | IP40 housing: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529 IP50 front panel: conforming to IEC 60529 |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Mounting position | Any position |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn not operating 11 ms IEC 60068-2-27 5 gn in operation 11 ms IEC 60068-2-27 |
| Relative humidity | 95 % 77...131 °F (25...55 °C) |
| Vibration resistance | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Width | 0.9 in (22.5 mm) |
| Product weight | 0.231 lb(US) (0.105 kg) |
| Housing material | Polycarbonate |
| Control signal pulse width | 100 ms with load in parallel 30 ms |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 61812-1 UL 508 |
| Category | US10CP222376 |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Status LED | Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised |
| Recovery time | 120 ms on de-energisation |
| Repeat accuracy | +/- 0.5 % IEC 61812-1 |
| Time delay range | 1...10 s 30...300 min 3...30 s 10...100 s 30...300 h 30...300 s 3...30 min 0.3...3 s 0.05...1 s 3...30 h |
| Creepage distance | 4 kV/3 IEC 60664-1 |
| Device short name | RE22 |
| Temperature drift | +/- 0.05 %/°C |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Function available | D- Symmetrical flashing relay (starting pulse-off)-2 C/O Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1 |
| Number of functions | 2 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Immunity to microbreaks | 10 ms |
| Safety reliability data | B10d = 200000 MTTFd = 216.8 years |
| Switching capacity in | 2000 VA |
| Electromagnetic compatibility | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Setting accuracy of time delay | +/- 10 % of full scale 25 °C IEC 61812-1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
