Schneider Electric RE22R2MMU
MPNRE22R2MMU
Active
TIMER24-240VAC/24VDC IN8A DPDT O
$44.00 – $94.99Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

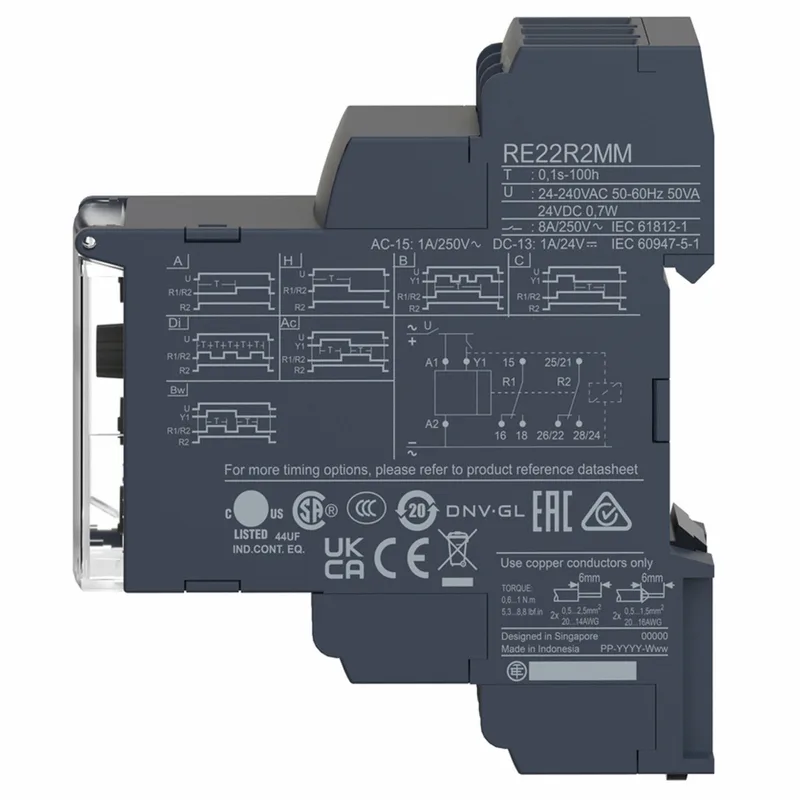

Specifications
| Parameter | Value |
|---|---|

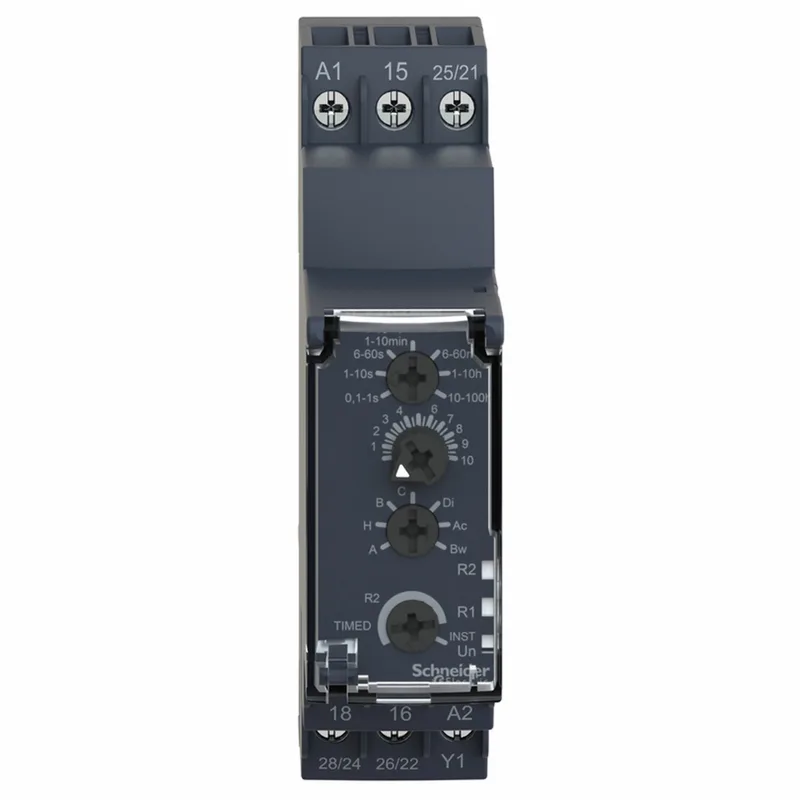

| Control type | Rotary knob front panel |
| Time delay type | Power on-delay - A- Power on-delay relay On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal Power on-delay - At- Power on-delay relay w/ pause/summation (Y1) Interval - B- Single interval relay w/ control signal Interval - Bw- Double interval relay w/ control signal Off-delay - C- Off-delay relay w/ control signal Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) Interval - H- Interval relay Interval - Ht- Interval relay w/ pause/summation (Y1) |
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Contacts type and composition | 1 C/O timed contact 1 C/O timed or instantaneous contact |
| Voltage drift | +/- 0.2 %/V |
| Voltage range | 0.85...1.1 Us |
| Maximum switching voltage | 250 V |
| Supply voltage | 24...240 V AC 24 V DC |
| Voltage | 5 kV 1.2...50 µs IEC 60664-1 5 kV IEC 61812-1 |
| Breaking capacity | 2000 VA |
All specifications
| Parameter | Value |
|---|---|
| Nominal output current | 8 A |
| Maximum switching current | 8 mA |
| Minimum switching current | 10 mA 5 V |
| Power on delay | 100 ms |
| Power consumption in | 50 VA 240 V AC |
| Supply frequency | 50...60 Hz +/- 5 % |
| IP degree of protection | IP40 housing: conforming to IEC 60529 IP20 terminal block: conforming to IEC 60529 IP40 front face: conforming to IEC 60529 |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 93 %, without condensation IEC 60068-2-30 |
| Vibration resistance | 20 m/s² (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Width | 0.9 in (22.5 mm) |
| Housing material | Polycarbonate |
| Control signal pulse width | 30 ms 100 ms under load |
| Electrical durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 61812-1 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 |
| Category | US10CP222376 |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Status LED | Green LED flashing)timing in progress Green LED steady)power ON Yellow LEDrelay energised |
| Recovery time | 120 ms on de-energisation |
| Repeat accuracy | +/- 0.5 % IEC 61812-1 |
| Time delay range | 10...100 h 6...60 s 0.1...1 s 1...10 h 1...10 s 1...10 min 6...60 min |
| Device short name | RE22 |
| Temperature drift | +/- 0.05 %/°C |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Function available | A- Power on-delay relay-2 C/O Ac- On-delay and off-delay relay w/ control signal-2 C/O At- Power on-delay relay w/ pause/summation (Y1)-2 C/O B- Single interval relay w/ control signal-2 C/O Bw- Double interval relay w/ control signal-2 C/O C- Off-delay relay w/ control signal-2 C/O D- Symmetrical flashing relay (starting pulse-off)-2 C/O Di- Symmetrical flashing relay (starting pulse-on)-2 C/O H- Interval relay-2 C/O Ht- Interval relay w/ pause/summation (Y1)-2 C/O |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1 |
| Number of functions | 10 |
| Insulation resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Immunity to microbreaks | 10 ms |
| Safety reliability data | MTTFd = 182.6 years B10d = 170000 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 Conducted and radiated emissions class B conforming to EN 55022 |
| Setting accuracy of time delay | +/- 10 % of full scale 25 °C IEC 61812-1 |
| Ambient air temperature for storage | -22...140 °F (-30...60 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
RE22R2MMU
