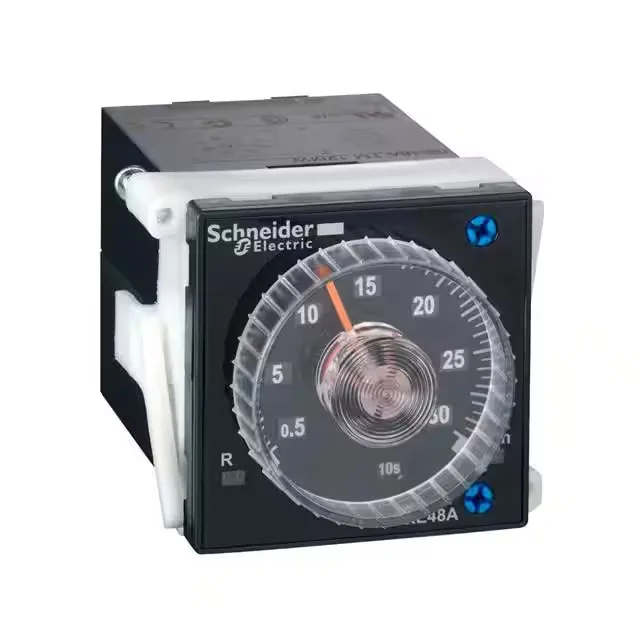

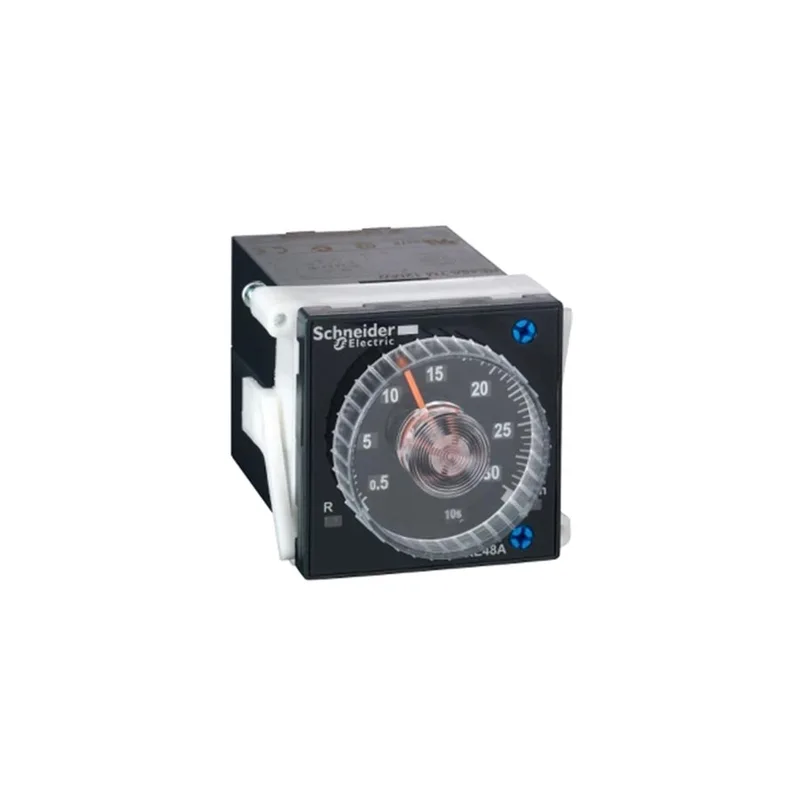

Schneider Electric RE48ATM12MW

Schneider Electric RE48ATM12MW

MPNRE48ATM12MW
Active

HARMONY, MODULAR TIMING RELAY, 5

$38.10 – $97.68Ref. price · indicative, final on quote
Schneider Electric RE48ATM12MW datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RE48ATM12MW key specifications
ParameterValue
Control typeSelector switch front panel
Time delay typePower on-delay - A1- Delay on energization
Range of productHarmony Timer Relays
Discrete output typeRelay
Product or component typePanel-mounted/plug-in timer relay
Contacts type and composition2 C/O timed contacts, AgNi (cadmium free)
Voltage drift+/- 0.2 %/V of the maximum setting value 48...240 V +/- 1 %/V of the maximum setting value 24...48 V
Voltage range0.85...1.1 Us AC 0.9...1.1 Us DC
Output voltage240 V 5 A AC-12 30 V 2 A DC-13 240 V 1.5 A AC-15
Surge withstand1 kV differential mode IEC 61000-4-5 level 3 2 kV common mode IEC 61000-4-5 level 3
Immunity to voltage dips30 % / 10 ms IEC 61000-4-11 95 % / 5 s IEC 61000-4-11 60 % / 100 ms IEC 61000-4-11
Maximum switching voltage250 V AC/DC

All specifications

RE48ATM12MW additional specifications
ParameterValue
Supply voltage24...240 V AC/DC 50/60 Hz
Breaking capacity1250 VA
Line rated current5 A
Maximum switching current5 A
Minimum switching current100 mA
Power consumption in6 VA 240 V
IP degree of protectionIP40 IEC 60529 housing) IP50 IEC 60529 front face)
Mounting supportPanel mounted: system supplied with the product Base mounted: socket
Electrical connectionPlug-in sub-base 8
Humidity drift+/- 0.05 %/%RH of the maximum setting value IEC 61812-1
Relative humidity93 % without condensation IEC 60068-2-3
Vibration resistance0.35 mm (f= 10...55 Hz) conforming to IEC 60068-2-6
Protection against electric shocks4 kV class III IEC 60664-1 4 kV class III IEC 61812-1
Width1.9 in (48 mm)
Housing materialPolycarbonate
Electrical durability100000 cycles
Mechanical durability30000000 cycles
Standards73/23/EEC 93/68/EEC EN 50082-1/2 89/336/EEC EN 50081-1/2 IEC 61812-1 IEC 60669-2-3
MarkingCE
CategoryUS10CP222370
Reset time25 ms on de-energisation
Shape of pinCylindrical
Component nameRE48
On-load factor100 %
Repeat accuracy+/- 0.2 % of the maximum setting value IEC 61812-1
Local signalling1 LED (yellow) for output relay state LED indicator (green) for flashing: relay energised timing in progress LED indicator (green) for on steady: relay energised, no timing in progress
Pick up duration55 ms
Time delay range5...300 h 2...120 min 0.5...30 h 0.2...12 h 0.2...12 min 0.2...12 s 0.5...30 min 2...120 h 2...120 s 0.02...1.2 s 0.5...30 s 5...300 s 0.05...3 s 5...300 min
Temperature drift+/- 0.02 %/°C of the maximum setting value IEC 61812-1
Function availableA1- Delay on energization-2 C/O A2- Delay on energization-2 C/O H1-Pulse-on energization-2 C/O H2-Pulse-on energization-2 C/O
Dielectric strength2 kV 1 mA/1 minute IEC 61812-1
Number of functions1
Minimum pulse duration20 ms
Immunity to microbreaks5 ms
Product front plate size48 x 48 mm
Resistance to fast transients2 kV IEC 61000-4-4 level 3 direct) 4 kV IEC 61000-4-4 level 4 direct)
Disturbance radiated (conducted)Class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
Setting accuracy of time delay+/- 5 % of full scale 25 °C IEC 61812-1 +/- 10 % of full scale 25 °C IEC 61812-1
Immunity to radioelectric fields10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 26 MHz to 1 GHz IEC 61000-4-3 level 3
Ambient air temperature for operation-4...122 °F (-20...50 °C)
Resistance to electrostatic discharge6 kV in contact IEC 61000-4-2 level 3 8 kV in air IEC 61000-4-2 level 3
MPN
RE48ATM12MW
