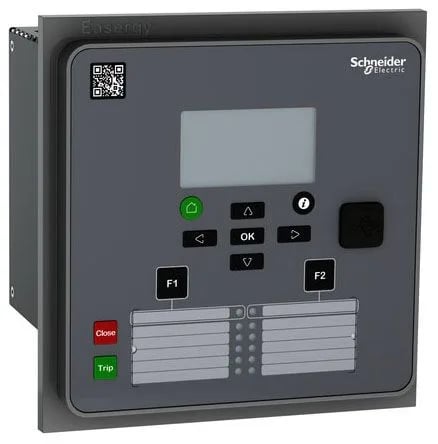

Schneider Electric REL52052
MPNREL52052
Obsolete
Square D REL52052 P3U20-6Aaa2Ahab 2Xrj|Square D REL52052 P3U20-6Aaa2Ahab,2Xrj
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | LCD 128 x 64 pixels with single line diagram LCD 128 x 64 pixels with ANSI symbols |
| Range of product | PowerLogic P3 |
| Product or component type | Protection relay |
| Switchgear diagnosis type | CT supervision Trip circuit supervision TCS |
| Climatic withstand | Exposure to dry heat Bd EN/IEC 60068-2-2 Exposure to cold Ad EN/IEC 60068-2-1 Exposure to damp heat in service Db EN/IEC 60068-2-30 Exposure to damp heat in service Cab EN/IEC 60068-2-78 |
| Power supply | 48...230 V AC/DC |
| IP degree of protection | IP54 IEC 60529 |
| Communication ports | Front USB port 1 Rear RJ45 2 |
| Communication protocols | IEC 61850 ed. 1 IEC 61850 ed. 2 IEC 60870-5-101 DNP3 TCP Modbus TCP EtherNet/IP |
| Time synchronisation protocol | SNTP |
| Redundancy communication port protocol | RSTP PRP |
| Device mounting | Flush |
All specifications
| Parameter | Value |
|---|---|
| Mounting case size | 20TE |
| Connections - terminals | Screw removable (digital input/output) Pin removable (current transformer) Pin removable (voltage transformer) |
| Relative humidity | 0...95 %, without condensation |
| Maximum operating altitude | 6561.68 ft (2000 m) |
| Depth | 8.07 in (205 mm) |
| Width | 6.7 in (170 mm) |
| Height | 6.7 in (169.5 mm) |
| Category | US1PL1S11405 |
| Web server | Embedded HTTP server |
| Cybersecurity | Password protection Port hardening |
| Number of key | 2 customizable |
| Local signalling | 4 LEDs 8 LEDs programmable |
| Logs and records | Event recording Disturbance recording Tripping context |
| Measuring inputs | 3 1/5 A CT phase current 1 1/5 A CT residual current 1 100 V/110 V VT voltage |
| Control functions | Switchgear control and monitoring Programmable switchgear interlocking Local control on single-line diagram Local control with I/O keys Local/remote control 2 function keys Mobile application with Easergy SmartApp Web-server |
| Number of sensors | 0 temperature sensor(s) 0 arc sensor(s) |
| Product reference | P3U20-6AAA2AHAB |
| Relay application | Universal |
| Operating threshold | 110 V AC/DC |
| Arc flash protection | No |
| Monitoring functions | Trip circuit supervision 74 Circuit breaker monitoring Relay self-monitoring |
| Protection functions | Phase overcurrent 50/51 Earth fault overcurrent 50N/51N Directional earth fault 67N Transient earth fault 67NI Capacitor bank unbalance 51C Broken conductor 46 I2/I1 Cold load pick-up H2 detection 68H2 H5 detection 68H5 Breaker failure 50BF Switch ON to fault (SOTF) Recloser 79 Phase undercurrent 37 Excessive starting time, locked rotor 48/51LR Motor restart inhibition 66 Capacitor overvoltage 59C Negative sequence overcurrent 46 Earth fault overvoltage 59N Rate of change of frequency 81R Lockout relay 86 CT supervision 60 Programmable stages 99 Programmable curve |
| Protective treatment | Conformal coating |
| Measurement functions | Current 3-phase Current zero sequence Current positive sequence Current negative sequence Current ratio of negative and positive Voltage zero sequence Earth fault reactance Frequency Current phasor diagram view Current 2nd, 15th harmonics with THD Condition monitoring CB wear |
| Mechanical robustness | Vibrations class II) IEC 60255-21-1 VibrationsFc IEC 60068-2-6 Shocks class II) IEC 60255-21-2 ShocksEa IEC 60068-2-27 Seismic tests method A class II) IEC 60255-21-3 |
| Number of setting groups | 4 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Electromagnetic compatibility | Emission tests IEC/EN 60255-26 ed. 3 Emission tests CISPR 11 Emission tests CISPR 22 EMC immunity IEC/EN 60255-26 ed. 3 EMC immunity EN/IEC 61000-4-18 EMC immunity IEC 60255-22-1 EMC immunity level 4 EN/IEC 61000-4-2 EMC immunity IEC 60255-22-2 EMC immunity level 3 EN/IEC 61000-4-3 EMC immunity IEC 60255-22-3 EMC immunity level 4 EN/IEC 61000-4-4 EMC immunity IEC 60255-22-4 EMC immunity level 3 EN/IEC 61000-4-5 EMC immunity IEC 60255-22-5 EMC immunity level 3 EN/IEC 61000-4-6 EMC immunity IEC 60255-22-6 EMC immunity EN/IEC 61000-4-8 EMC immunity level 5 EN/IEC 61000-4-9 EMC immunity EN/IEC 61000-4-29 EMC immunity EN/IEC 61000-4-11 EMC immunity EN/IEC 61000-4-17 EMC immunity IEC 60255-27 EMC immunity class III IEC 60255-5 EMC immunity EN/IEC 60255-1 |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 DO 1 watchdog |
| Controllable switchgear devices | 4 controlled + 4 displayed |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...149 °F (-40...65 °C) |
