Schneider Electric REXL4TMJD
MPNREXL4TMJD
Obsolete

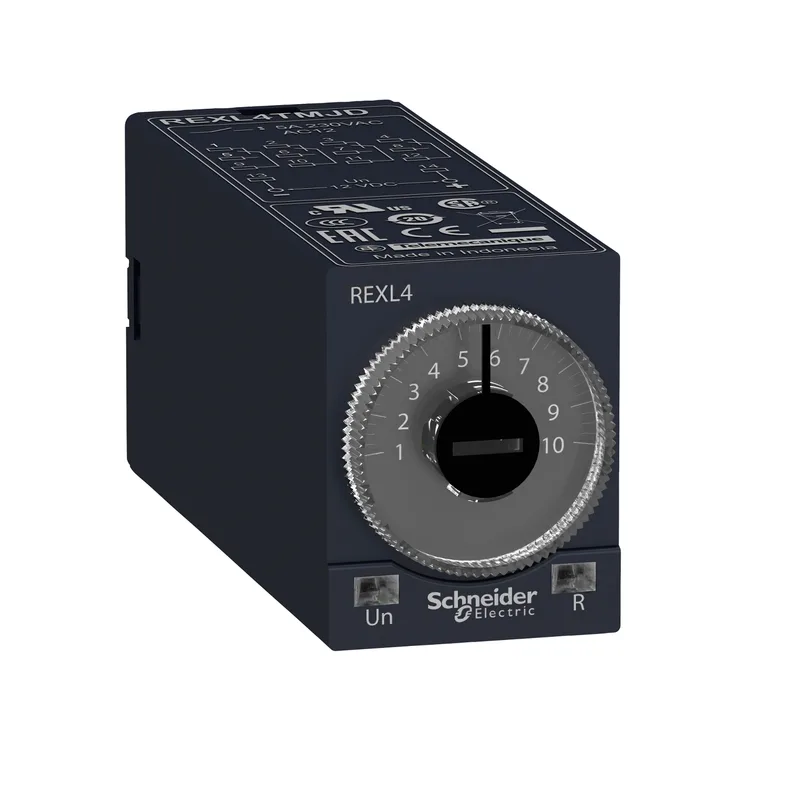

on-delay timing relay - 0.1 s..100 h - 12 V DC - 4 OC
$38.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Time delay type | A |
| Range of product | Harmony Relay |
| Discrete output type | Relay |
| Product or component type | Miniature timing relay |
| Contacts type and composition | 4 C/O |
| Voltage drift | +/- 0.2 %/V |
| Voltage range | 0.9...1.1 Us |
| Surge withstand | 2 kV EN/IEC 61000-4-5 level 3 |
| Immunity to voltage dips | >= 95 % / 1 s EN/IEC 61000-4-11 30 % / 10 ms EN/IEC 61000-4-11 60 % / 100 ms EN/IEC 61000-4-11 |
| Supply voltage | 12 V DC |
| Voltage | 250 V IEC 255 Group C 250 V VDE 0010 |
| Line rated current | 5 A AC |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 100 mA |
| Maximum temporary permissible current | 10 A < 10 s |
| Maximum power consumption | 1.5 W |
| IP degree of protection | IP50 conforming to IEC 60529 |
| Relative humidity | 95 % without condensation IEC 60068-2-6 |
| Vibration resistance | 0.35 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Contacts material | Cadmium free |
| Electrical durability | 100000 cycles 250 V AC resistive |
| Mechanical durability | 10000000 cycles |
| Standards | 93/68/EEC EN 50081-2 73/23/EEC EN 61000-6-2 EN/IEC 60601-2 EN/IEC 60601-1 89/336/EEC EN/IEC 61812-1 |
| Category | US10CP222370 |
| Fixing mode | Plug-in (socket) |
| Component name | REXL |
| Repeat accuracy | +/- 0.5 % |
| Local signalling | 1 LED (red) for output in operation 1 LED (yellow) for power ON |
| Time delay range | 10...100 h 6...60 min 1...10 h 0.1...1 s 6...60 s 1...10 s 1...10 min |
| Creepage distance | 4 kV/3 IEC 60664-1 |
| Temperature drift | 0.05 %/°C |
| Maximum reset time | 250 ms after time delay, on de-energisation 50 ms during time delay, on de-energisation |
| Dielectric strength | 2 kV 1 mA/1 minute 50 Hz EN/IEC 60601-1 2 kV 1 mA/1 minute 50 Hz EN/IEC 61812-1 |
| Immunity to microbreaks | 5 ms |
| Maximum switching capacity | 4 x 5 A |
| Output overvoltage protection | 2 J |
| Resistance to fast transients | 2 kV EN/IEC 61000-4-4 level 3 |
| Disturbance radiated (conducted) | Class B EN 55022 (EN 55011 group 1) |
| Setting accuracy of time delay | 10 % at full scale 25 °C EN/IEC 61812-1 |
| Immunity to radioelectric fields | 10 V 0.15...80 MHz)EN/IEC 61000-4-6 level 3 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) EN/IEC 61000-4-3 level 3 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
| Resistance to electrostatic discharge | 6 kV in contact EN/IEC 61000-4-2 level 3 8 kV in air EN/IEC 61000-4-2 level 3 |
