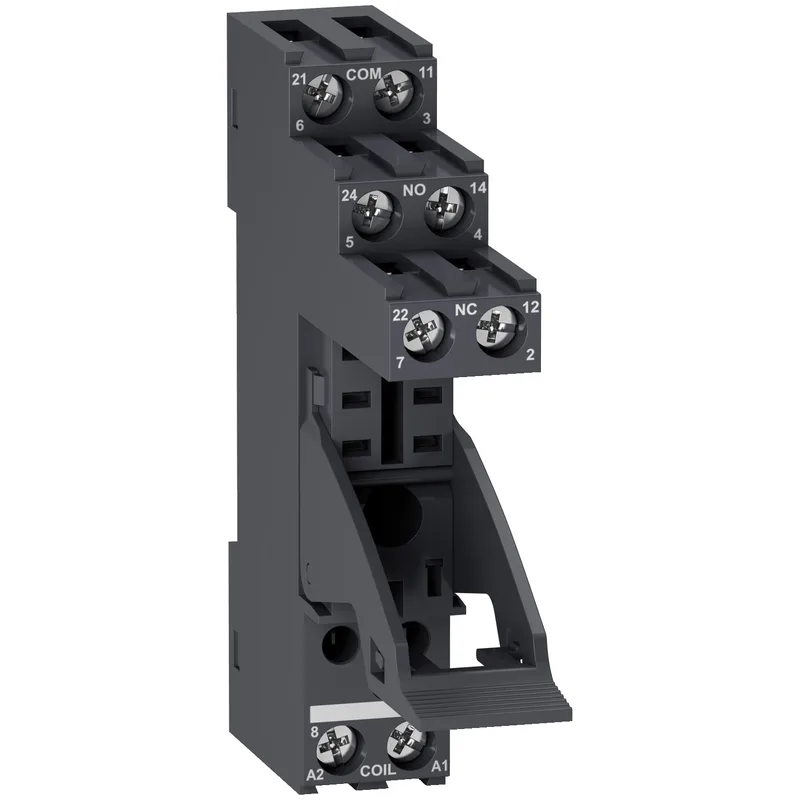

Schneider Electric RGZE1S48M
MPNRGZE1S48M
Active
SOCKET 250VAC 10A FOR RXG2 RELAY|SOCKET 250VAC 10A FOR RXG2 RELAY
$3.19Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screw type | M3 |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| Contacts type and composition | 2 C/O |
| Voltage | 250 V |
| [Ue] rated operational voltage | 250 V IEC 300 V UL |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation |
| IP degree of protection | IP20 |
| Wire stripping length | 0.2...0.3 in (6...7 mm) |
| Connections - terminals | Screw terminals, 1 x 0.34...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end |
| Contact terminal arrangement | Separate |
| Pollution degree | 3 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...85 % |
| Standards | CSA C22.2 No 14 IEC 61984 UL 508 |
| Category | US10CP221128 |
| Fixing mode | Screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation |
| Overvoltage category | III |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
RGZE1S48M
