Schneider Harmony Relay RHN-412G, 4 C/O contacts, 5 A switching current, 125 V coil, 1.6 W at 20 °C, 20 million mechanical cycles, IEC 60255 certified.
| Parameter | Value |
|---|---|
| Series | Harmony Relay |
| Range of product | Harmony Relay |
| Contacts type and composition | 4 C/O |
| Voltage max | <100 V for 3 A at 24 V |
| Voltage insulation | 250 V |
| Coil dropout voltage | 0.1...0.3 Uc |
| Terminals description ISO n°1 | (11-12-14)OC (41-42-44)OC (21-22-24)OC (31-32-34)OC (A1-A2)CO |
| Shock | 50 gn 11 ms NF C 20-608 |
| Depth | 53.34 |
| Width | 33.02 |
| Height | 43.18 |
| Mechanical life cycles | 20000000 cycles |
| Parameter | Value |
|---|---|
| Standards | IEC 60255 VDE 0435 BS 4794 NF C 45-250 |
| Dielectric | 2500 V |
| Status LED | Without |
| Test levels | Level A group mounting |
| Test_levels | Level A group mounting |
| Control_type | Manual control |
| Package_type | PCE |
| Coil voltage | 125 |
| Has_status_led | false |
| Resistance | 30 mOhm 68 °F (20 °C) |
| Time constant | 12 ms open 15 ms closed |
| Device short name | RHN |
| Contact_operation | Instantaneous Standard |
| Operating time | 1 |
| Compatibility code | RHN |
| Compatibility_code | RHN |
| Operating_position | Any position |
| Contact bounce time | <= 10 ms |
| Contact_bounce_time | <= 10 ms |
| Contact_composition | 4 C/O |
| Switching current | 5 |
| Storage temperature | -40...158 °F (-40...70 °C) |
| Protective treatment | TC |
| Average coil consumption | 1.6 W 68 °F (20 °C) |
| Maximum operating rate max | 6 cyc/mn |
| Coil interference suppression | Without |
| Coil_interference_suppression | Without |
| Minimum switching capacity min | 150 mVA 10 mA 150 mVA, 1 V |
| Average coil consumption in | 1.6 W at 20 °C |
| Main_product_or_component_type | Plug-in relay |
| Operating temperature | 23 |
| Ordering and shipping details (Category) | 18073-SPARE PARTS DISCOUNT I |

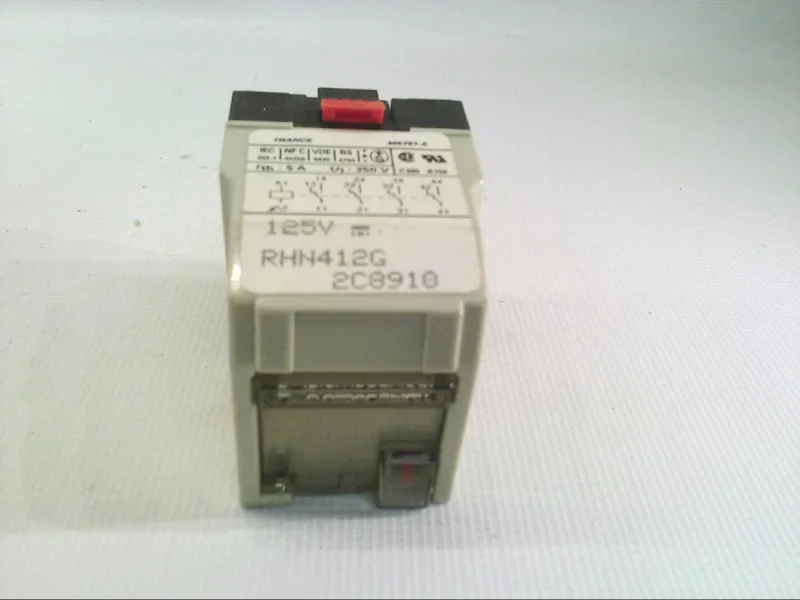

The RHN-412G is a Schneider Harmony Relay with 4 C/O instantaneous contacts rated for 5 A switching current. The coil is 125 V DC, drawing 1.6 W at 20 °C.
The RHN-412G is an active part in the Harmony Relay series. It carries certifications per IEC 60255, VDE 0435, BS 4794, and NF C 45-250. For current lead time and pricing, submit an RFQ.
