Schneider Electric RKA36120CU64AE1
MPNRKA36120CU64AE1
Active

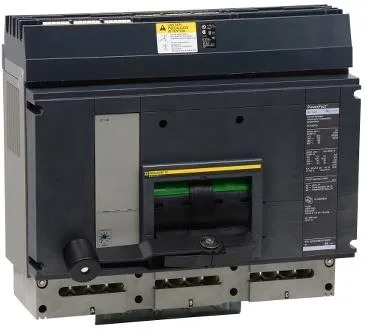

RKA36120CU64AE1 - 3 POLE by SCHNEIDER ELECTRIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Operating handle |
| Product or component type | Circuit breaker |
| Voltage | 750 V IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz UL 489 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489 AIR 65 kA 480 V AC 50/60 Hz UL 489 AIR 65 kA 600 V AC 50/60 Hz UL 489 Icu 85 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 70 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 1200 A |
| Breaking capacity code | K |
| Continuous current rating | 100 % |
| [Ics] rated service breaking capacity | 65 kA 240 V AC 50/60 Hz IEC 60947-2 55 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Power wire stripping length | 1.2 in (30 mm) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 3P |
| Utilisation category | Category A |
| IP degree of protection | IP40 |
| Communication interface | Modbus |
| Mounting mode | I-Line bracket) |
| Mounting support | Bracket |
| Terminal identifier | AL1200R53K |
| Electrical connection | I-Line connection, line Lugs, load |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | < 6561.68 ft (2000 m) without derating 13123.36 ft (4000 m) with derating |
| Depth | 14.49 in (368.05 mm) |
| Width | 16.54 in (420.12 mm) |
| Height | 16.24 in (412.50 mm) |
| Standards | UL CSA NEMA NMX J-266 IEC 60947-2 |
| Range | PowerPact |
| AWG gauge | 4 x AWG 3/0...600 kcmil aluminium/copper 4 x AWG 3/0...500 kcmil copper |
| Quality labels | CE |
| Trip unit name | MicroLogic 6.0 P |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 voltage release MN or MX plug-in) |
| Local signalling | Alarm 1 LED yellow)long-time pick up) 1 LED red)long-time pick up) Trip causes 1 LED red) 1 LED red)digital ammeter) Ground indicator 1 LED red) Phase-loading LED green)load balancing) |
| Quantity per set | 1 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.5 in² (95...300 mm²) (4 x AWG 3/0...600 kcmil) |
| Device application | Distribution |
| Trip unit technology | Electronic, power, MicroLogic 6.0 P, LSIG |
| Suitability for isolation | Yes IEC 60947-2 |
| Circuit breaker application | HACR rated |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
RKA36120CU64AE1
