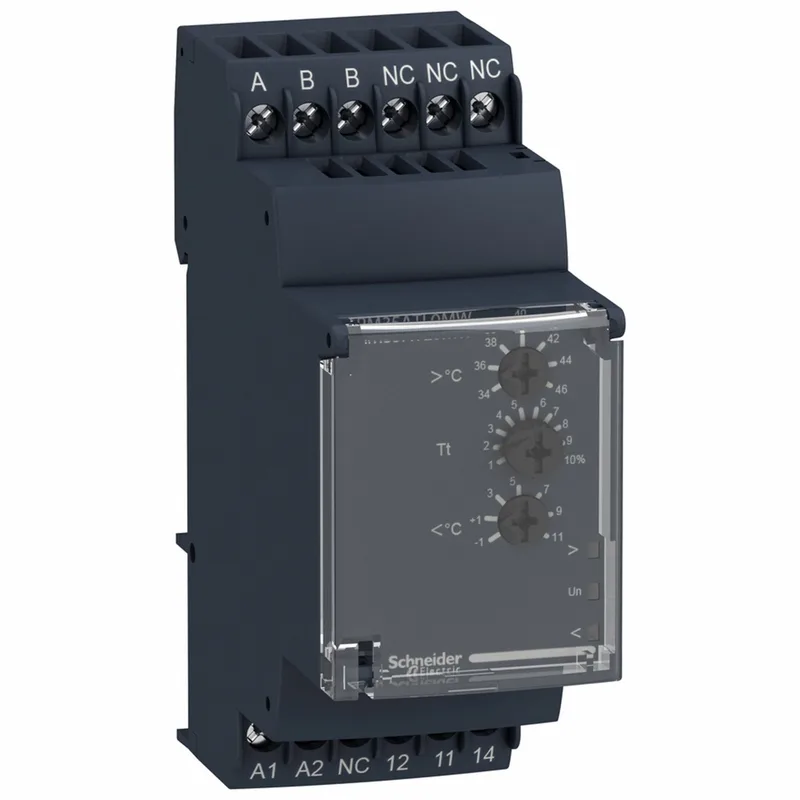

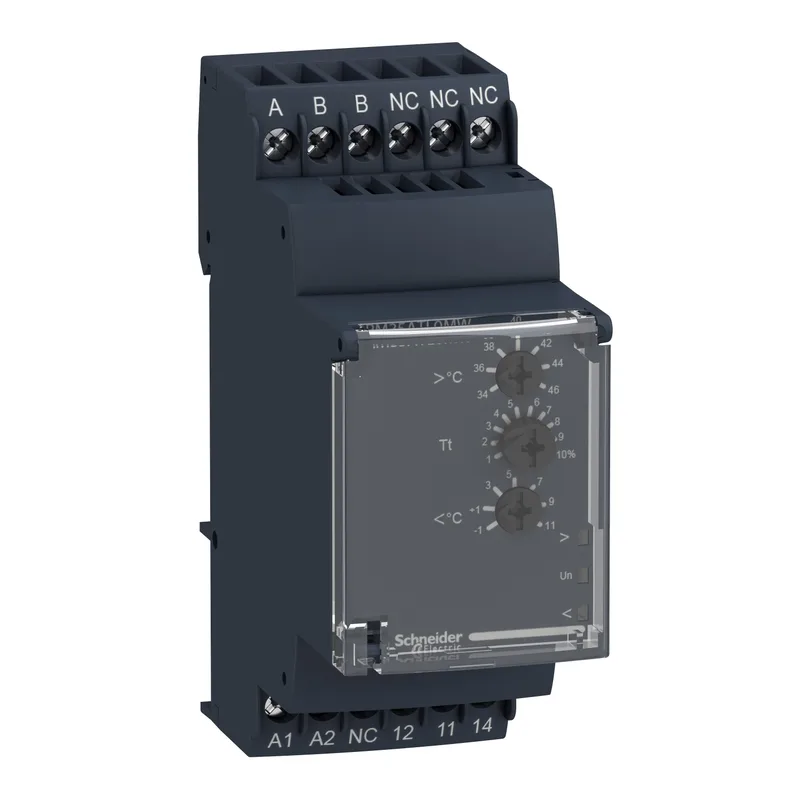

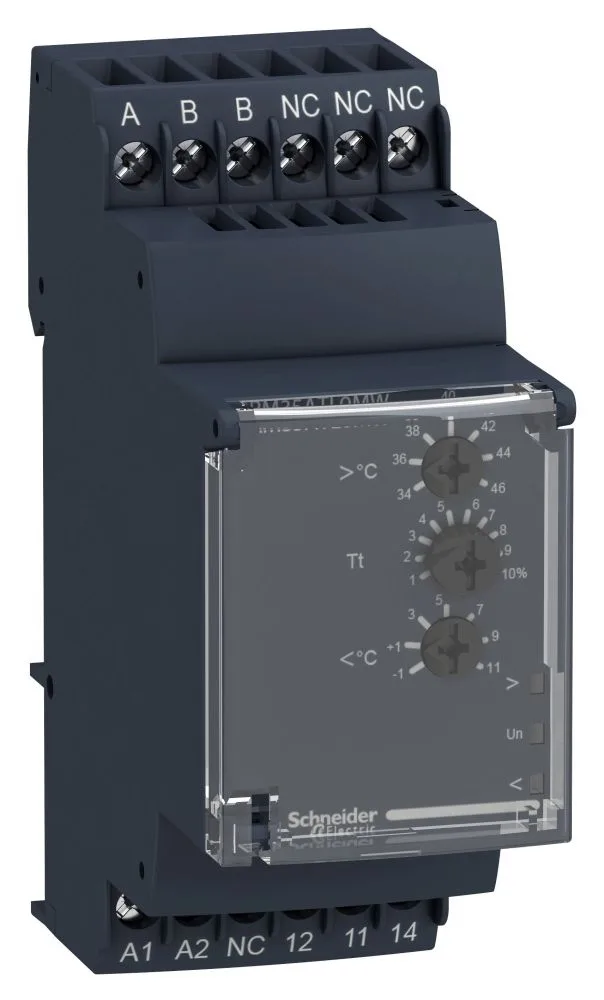

Schneider Electric RM35ATL0MW

Schneider Electric RM35ATL0MW

MPNRM35ATL0MW
Active

HARMONY, MODULAR TEMPERATURE CON

$61.00Ref. price · indicative, final on quote
Schneider Electric RM35ATL0MW datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RM35ATL0MW key specifications
ParameterValue
TypeTemperature control relays
Control typeWithout test button
Range of productHarmony Control Relays
Product or component typeElevator machine room temperature control relay
Supply voltage limits20.4...264 V AC 21.6...264 V DC
Dielectric test voltage2 kV AC 50 Hz, 1 min
Maximum switching voltage250 V AC/DC
Supply voltage24...240 V AC/DC
[Un] rated nominal voltage24...240 V AC/DC 50/60 Hz, non self-powered
Operating voltage tolerance- 10 % + 10 % Un DC - 15 % + 10 % Un AC
Voltage250 V IEC 60664-1
Nominal output current5 A

All specifications

RM35ATL0MW additional specifications
ParameterValue
Minimum switching current10 mA 5 V DC
Delay at power up0.2 s
Maximum power consumption in3.5 VA AC
Supply frequency50/60 Hz +/- 10 %
Utilisation categoryAC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1
IP degree of protectionIP20 IEC 60529 terminals) IP30 IEC 60529 casing)
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Connections - terminalsScrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Resistance across terminals1.33 kOhm temperature
Response time500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Pollution degree3 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60255-21-1
Vibration resistance0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Non-dissipating shock wave4 kV
Width1.4 in (35 mm)
Housing materialPolycarbonate
Contacts materialCadmium free
Electrical durability100000 cycles
Mechanical durability30000000 cycles
StandardsIEC 60255-6 NF EN 60255-6
CategoryUS10CP222380
InsulationGalvanic insulation between supply and measurement
Relay nameRM35AT
Reset time8 s
Time delayAdjustable 1...10 s Tt- time delay upon fault
Operating rate<= 360 operations/hour full load
Output contacts1 C/O
Local signalling1 LED Green power ON 1 LED Yellow correct temperature (high R1) 1 LED Yellow correct temperature (low R2)
Time delay range0.1...10 s adjustable 0...10 % of the full scale value)
Measurement range+/- 1...46 °C
Tightening torque5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1
Operating positionAny position without derating
Measurement accuracy+/- 2 °C
Immunity to microbreaks10 ms
Switching capacity in1250 VA
Relay monitored parametersUnder temperature: -1...11°C Over temperature: 34...46°C
Product specific applicationFor elevator machine rooms and 3-phase supplies
Electromagnetic compatibilityEmission standard for industrial environments IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...122 °F (-20...50 °C)
MPN
RM35ATL0MW
