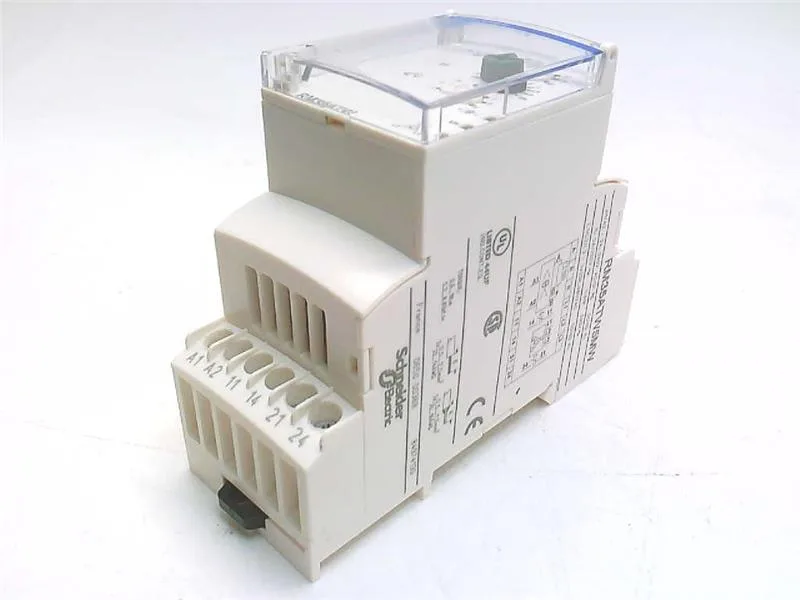

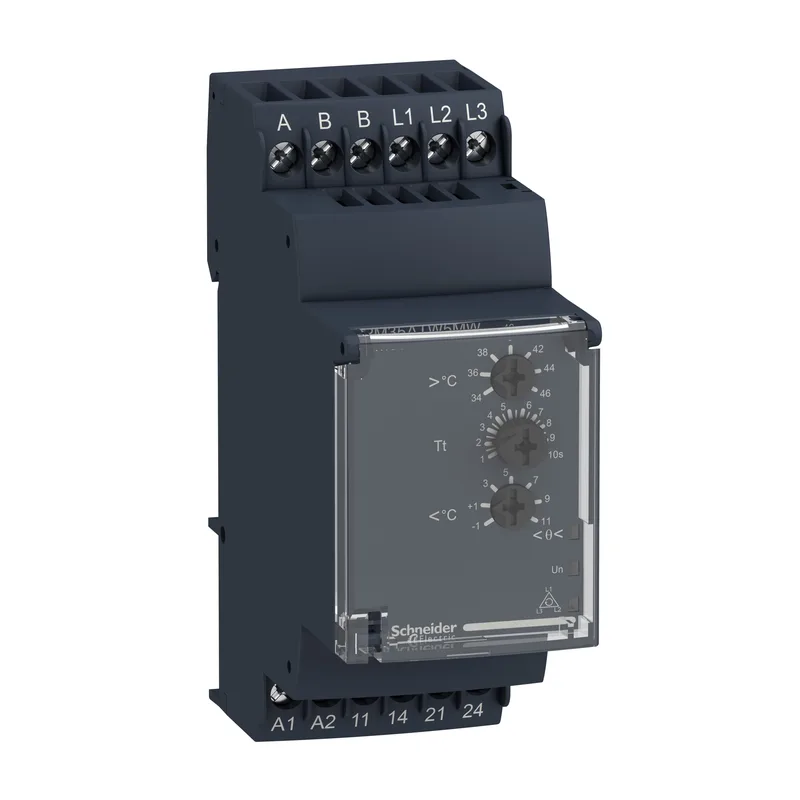

Schneider Electric RM35ATW5MW
MPNRM35ATW5MW
Obsolete
HARMONY, MODULAR TEMPERATURE 3-P
$91.47Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Temperature control relays |
| Control type | Without test button |
| Range of product | Harmony Control Relays |
| Temperature probe type | Pt 100 - 3-wire |
| Product or component type | Elevator machine room temperature control relay |
| Supply voltage limits | 20.4...264 V AC 21.6...264 V DC |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage | 24...240 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Operating voltage tolerance | - 10 % + 10 % Un DC - 15 % + 10 % Un AC |
| Voltage | 400 V IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Nominal output current | 5 A |
| Minimum switching current | 10 mA 5 V DC |
| Delay at power up | 0.2 s |
| Maximum power consumption in | 3.5 VA AC |
| Supply frequency | 50/60 Hz +/- 10 % |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Resistance across terminals | 600 kOhm 3-phase 1.33 kOhm temperature |
| Response time | 500 ms (in case of 3-phase fault) 500 ms (on disappearance of fault) |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| Vibration resistance | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Non-dissipating shock wave | 4 kV |
| Width | 1.4 in (35 mm) |
| Housing material | Polycarbonate |
| Contacts material | Cadmium free |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | NF EN 60255-6 IEC 60255-6 |
| Category | US10CP222380 |
| Relay name | RM35AT |
| Reset time | 8 s |
| Time delay | Adjustable 1...10 s Tt- time delay upon fault |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 2 NO |
| Installed device | Pt 100 probe cable length 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Local signalling | 1 LED Green power ON 1 LED Yellow correct temperature (high R1)/(low R2) 1 LED Yellow phases of relay |
| Time delay range | 0.1...10 s adjustable 0...10 % of the full scale value) |
| Measurement range | 208...480 V AC +/- 1...46 °C |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Operating position | Any position without derating |
| Measurement accuracy | +/- 2 °C |
| Immunity to microbreaks | 10 ms |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Phase sequence Phase failure detection Under temperature: -1...11°C Over temperature: 34...46°C |
| Product specific application | For elevator machine rooms and 3-phase supplies |
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
RM35ATW5MW
