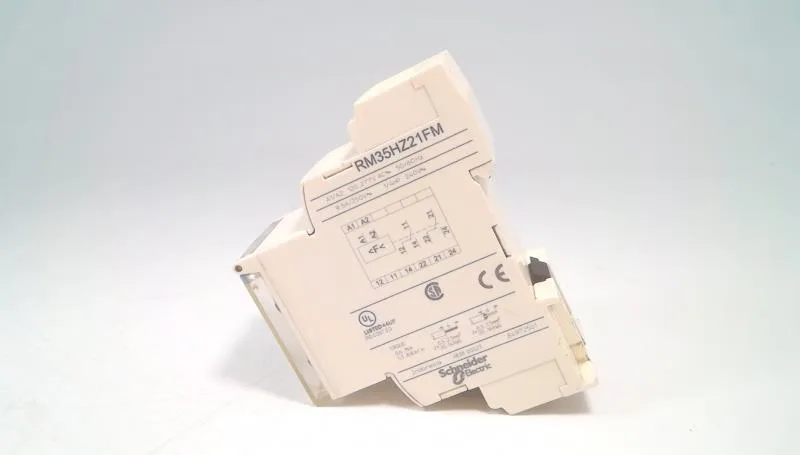

Schneider Electric RM35HZ21FM
MPNRM35HZ21FM
Active
HARMONY, MODULAR FREQUENCY CONTR
$72.39Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Frequency control relays |
| Control type | Without test button |
| Time delay type | Adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault |
| Range of product | Harmony Control Relays |
| Product or component type | Frequency control relay |
| Supply voltage limits | 102...308 V AC |
| Dielectric test voltage | 2 kV AC 50 Hz |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage | 120...277 V AC |
| [Un] rated nominal voltage | 120...277 V AC, non self-powered |
| Operating voltage tolerance | - 15 % + 10 % Un |
| Voltage | 400 V IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Nominal output current | 5 A |
| Minimum switching current | 10 mA 5 V DC |
| Delay at power up | 0.5 s |
| Maximum power consumption in | 6 VA AC |
| Supply frequency | 50/60 Hz +/- 10 % |
| Maximum input frequency | 70 Hz |
| Control circuit frequency | 40...70 Hz |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Non-dissipating shock wave | 4 kV |
| Width | 1.4 in (35 mm) |
| Housing material | Polycarbonate |
| Contacts material | Cadmium free |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | IEC 60255-6 NF EN 60255-6 |
| Marking | CE : 73/23/EEC CE : EMC 89/336/EEC |
| Category | US10CP222380 |
| Hysteresis | 0.3 % fixed |
| Insulation | No galvanic insulation between supply and measurement |
| Relay name | RM35HZ21FM |
| Reset time | 2000 ms time delay |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 1 C/O + 1 C/O |
| Repeat accuracy | +/- 0.5 % input and measurement circuit +/- 0.5 % time delay |
| Local signalling | 1 LED Green power ON 1 LED Yellow correct frequency (high R1) 1 LED Yellow correct frequency (low R2) |
| Measurement error | +/- 0.05 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation |
| Measurement range | 40...70 Hz |
| Threshold setting | -2...10 Hz -10...2 Hz |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Operating position | Any position without derating |
| Measurement accuracy | +/- 10 % of the full scale value in input +/- 10 % of the full scale value in time delay |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Immunity to microbreaks | 10 ms |
| Maximum measuring cycle | 200 ms measurement cycle as true rms value |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Overfrequency and underfrequency 50 or 60 Hz |
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
