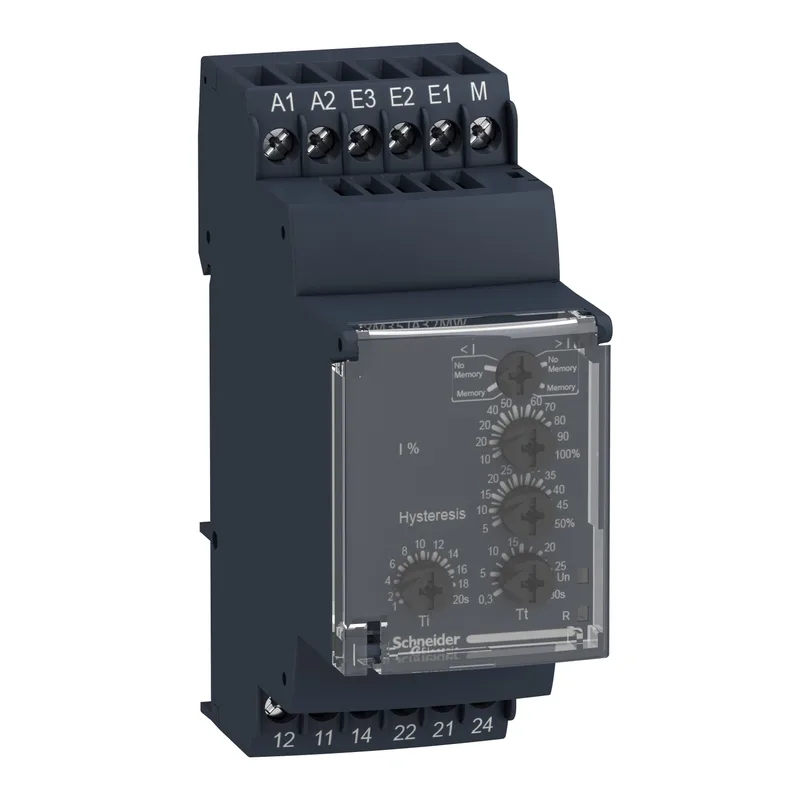

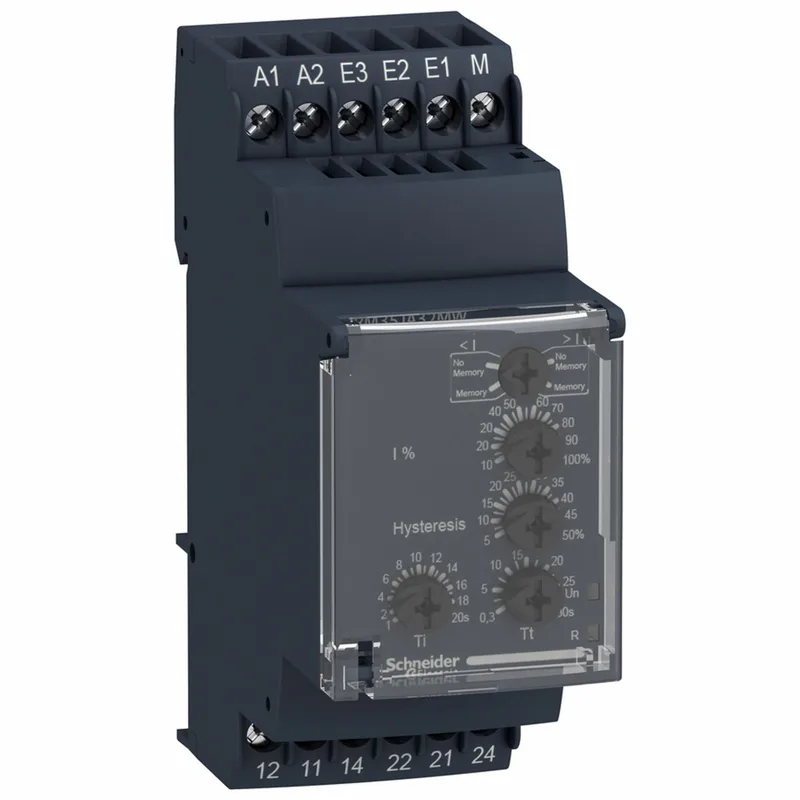

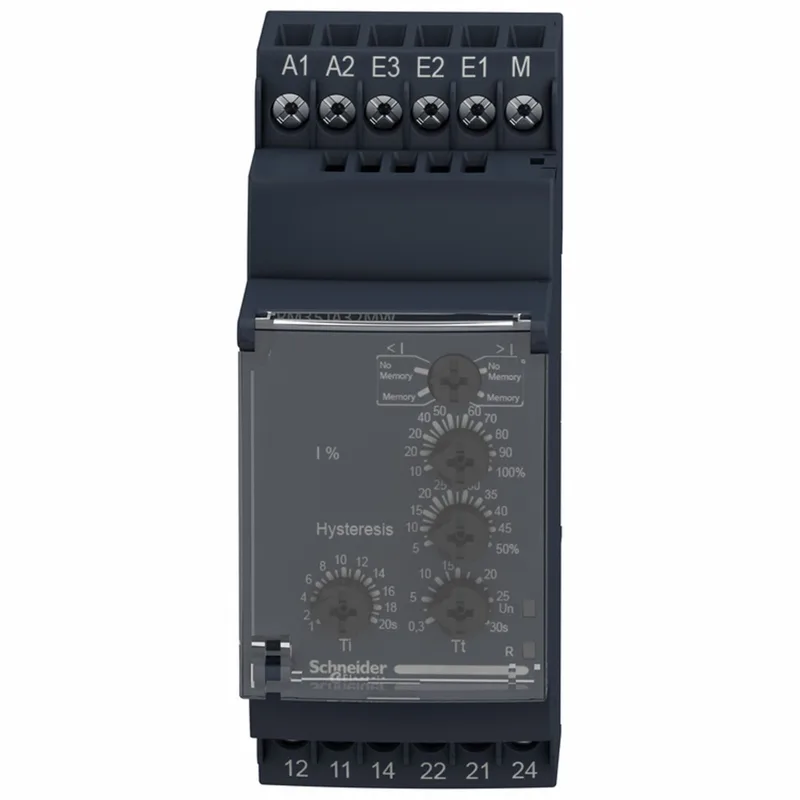

Schneider Electric RM35JA32MW
MPNRM35JA32MW
Active
HARMONY, MODULAR 1-PHASE CURRENT
$64.77Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Current control relay |
| Control type | Without test button |
| Time delay type | Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup |
| Range of product | Harmony Control Relays |
| Product or component type | Current control relay |
| Contacts type and composition | 2 C/O |
| Supply voltage limits | 20.4...264 V AC/DC |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min IEC 60255-5 2 kV AC 50 Hz, 1 min IEC 60664-1 |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Operating voltage tolerance | - 15 % + 10 % Un |
| Voltage | 250 V IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Nominal output current | 5 A |
| Maximum switching current | 5 A AC/DC |
| Minimum switching current | 10 mA 5 V DC |
| Delay at power up | 0.3 s |
| Maximum power consumption in | 3.5 VA AC |
| Control circuit frequency | 40...70 Hz +/- 10 % |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Resistance across terminals | 0.005 Ohm E3-M terminals 0.015 Ohm E2-M terminals 0.05 Ohm E1-M terminals |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1 |
| Non-dissipating shock wave | 4 kV IEC 60255-5 4 kV IEC 60664-1 4 kV IEC 61000-4-5 |
| Width | 1.4 in (35 mm) |
| Housing material | Polycarbonate |
| Contacts material | Cadmium free |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | IEC 60255-6 |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Category | US10CP222380 |
| Polarity | No DC |
| Hysteresis | 5...50 % threshold setting |
| Insulation | Between supply and measurement |
| Relay name | RM35JA |
| Reset time | 1500 ms time delay |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 2 C/O |
| Repeat accuracy | +/- 0.5 % input and measurement circuit +/- 2 % time delay |
| Local signalling | LED (green) for power ON LED (yellow) for relay ON |
| Measurement error | 0.05 %/°C with temperature variation 1 by volt over the whole range with voltage variation |
| Measurement range | 150 mA...15 A current AC/DC |
| Threshold setting | 10...100 % |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Operating position | Any position without derating |
| Measurement accuracy | +/- 10 % of the full scale value |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Immunity to microbreaks | 50 ms |
| Maximum measuring cycle | 30 ms measurement cycle as true rms value |
| Safety reliability data | MTTFd = 296.8 years B10d = 270000 |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Overcurrent or undercurrent detection |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
RM35JA32MW
