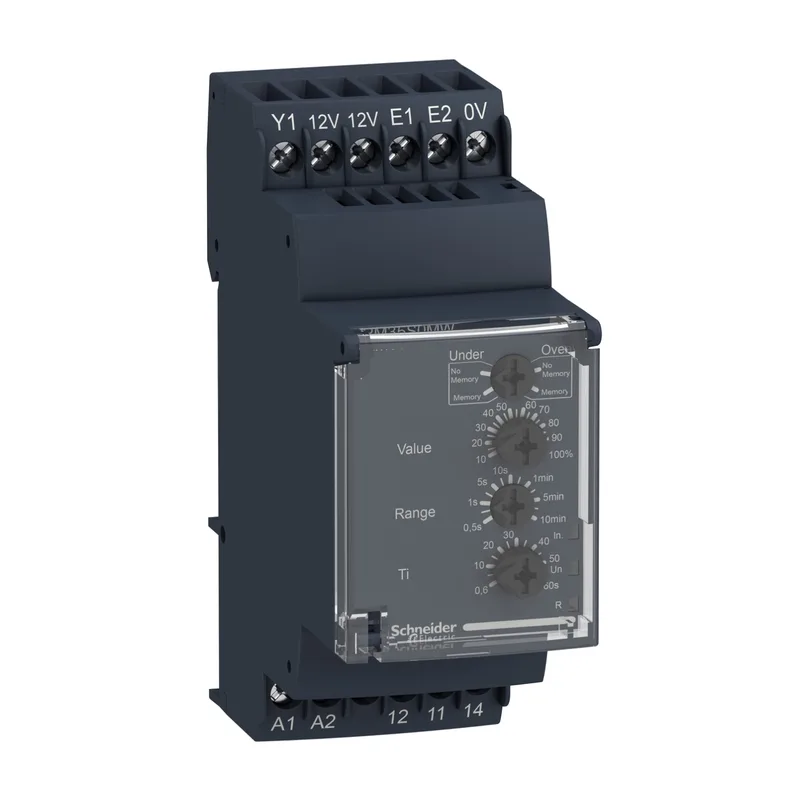

Schneider Electric RM35S0MW
MPNRM35S0MW
Active
HARMONY, MODULAR SPEED CONTROL R
$72.39Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Speed control relays |
| Control type | Without test button |
| Range of product | Harmony Control Relays |
| Product or component type | Speed control relay |
| Supply voltage limits | 20.4...264 V AC/DC |
| Dielectric test voltage | 2 kV AC 50 Hz |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage for sensor | 11.5...12.5 V |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Operating voltage tolerance | - 15 % + 10 % Un |
| Voltage | 250 V IEC 60664-1 |
| Nominal output current | 5 A |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 10 mA 5 V DC |
| Maximum supply current for sensors | 40 mA < 24 V AC 77 °F (25 °C) 40 mA < 24 V DC 77 °F (25 °C) 50 mA 24...240 V AC 50 mA 24...240 V DC |
| Delay at power up | 0.05 s |
| Maximum power consumption in | 5 VA AC |
| Input frequency | 0.0017...20 Hz |
| Supply frequency | 50/60 Hz +/- 10 % |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Response time | 15 ms max (on crossing the threshold) |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6...150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Non-dissipating shock wave | 4 kV |
| Width | 1.4 in (35 mm) |
| Housing material | Polycarbonate |
| Contacts material | Cadmium free |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | NF EN 60255-6 IEC 60255-6 |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Category | US10CP222380 |
| Polarity | Reversible polarity on DC supply |
| Hysteresis | 5 % threshold |
| Relay name | RM35S |
| Status LED | 1 LED Green power ON 1 LED Yellow inhibit 1 LED Yellow relay (R) |
| Time delay | Adjustable 0.6...60 s Ti- inhibition time delay upon startup |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 1 C/O |
| Repeat accuracy | +/- 0.5 % input and measurement circuit +/- 0.5 % time delay |
| Impulse duration | >= 5 ms high state >= 5 ms low state |
| Time delay range | 0.6...60 s adjustable on energisation 0...10 % of the full scale value) |
| Measurement error | +/- 0.1 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation |
| Measurement range | 0.05...600 s |
| Threshold setting | 10...100 % |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Operating position | Any position without derating |
| Input compatibility | 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA NAMUR sensor (E2), 12 V, 1.5 kOhm Voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V Volt-free contact input (E1), 12 V, 9.5 kOhm |
| Measurement accuracy | +/- 10 % of the full scale value |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Immunity to microbreaks | 50 ms |
| Rest time in memory mode | 50 ms contact S2 in memory mode on time delay 1 s supply Un in memory mode on time delay |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Overspeed Underspeed |
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
RM35S0MW
