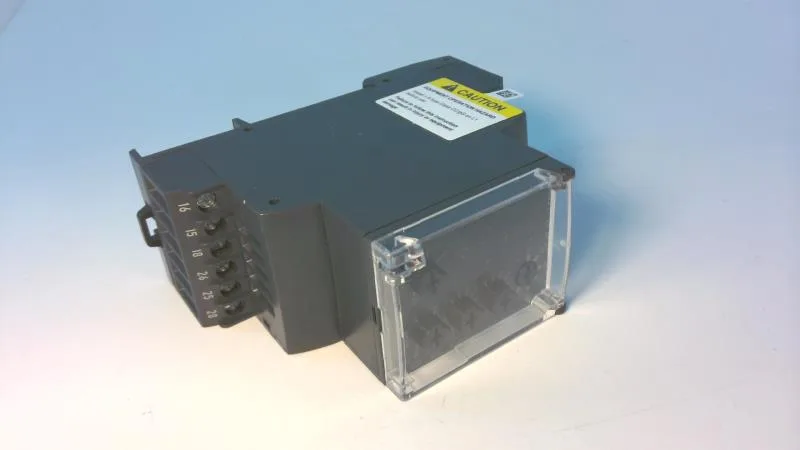

Schneider Electric RM35TF30SP01

Schneider RM35TF30SP01 Harmony relay, 5 A DPDT, 15 gn shock

MPNRM35TF30SP01
Obsolete

Schneider Electric Harmony Relay RM35TF30SP01 multifunction control relay, voltage asymmetry/phase loss/phase sequence sensing, 5 A DPDT output, 15 gn 11 ms shock, IP20, DIN rail mount.

$158.69 – $347.57Ref. price · indicative, final on quote
Schneider Electric RM35TF30SP01 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RM35TF30SP01 key specifications
ParameterValue
TypeMultifunction control relay
Time delay typeAdjustable 0.1...10 s, +/- 10 % of the full scale value
Range of productHarmony Relay
Product or component typeModular measurement and control relays
Voltage range220...480 V phase to phase
Supply voltage limits194...528 V AC, 3 phase
Dielectric test voltage2 kV AC 50 Hz, 1 min
Maximum switching voltage250 V AC 250 V DC
Voltage detection threshold< 194 V
Threshold adjustment voltage2...20 % of Un selected -12...-2 % in the range 220 V AC +2...+10 % in the range 480 V AC -20...-2 % in the range 380...480 V AC +2...+20 % in the range 220...440 V AC
Voltage400 V IEC 60664-1
Control circuit voltage limits- 12 % + 10 % Un

All specifications

RM35TF30SP01 additional specifications
ParameterValue
Nominal output current5 A
Maximum switching current5 A AC 5 A DC
Minimum switching current10 mA 5 V DC
Delay at power up650 ms
Power consumption in0...22 VA 400 V AC 50 Hz
Supply frequency50/60 Hz +/- 10 %
Control circuit frequency50...60 Hz +/- 10 %
Utilisation categoryAC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1
IP degree of protectionIP20 IEC 60529 terminals) IP30 IEC 60529 casing)
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Connections - terminalsScrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Response time< 200 ms (in the event of a fault)
Pollution degree3 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60255-21-1
Relative humidity95 % 131 °F (55 °C) IEC 60068-2-30
Vibration resistance0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1
Non-dissipating shock wave4 kV
Width1.4 in (35 mm)
Housing materialPolycarbonate
Electrical durability100000 cycles
Mechanical durability30000000 cycles
StandardsIEC 60255-1
MarkingCE
CategoryUS10CP222380
Directives89/336/EEC - electromagnetic compatibility 73/23/EEC - low voltage directive
Hysteresis2 %
Relay nameRM35TF
Reset time1500 ms at 480 V
Operating rate<= 360 operations/hour full load
Output contacts2 C/O
Repeat accuracy0.3 % time delay 0.5 % input and measurement circuit
Local signallingLED (green) for power ON LED (yellow) for relay ON LED (yellow) for fault
Measurement error< 1 % over the whole range with voltage variation 0.05 %/°C with temperature variation
Tightening torque5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1
Operating positionAny position without derating
Overvoltage categoryIII conforming to IEC 60664-1
Insulation resistance> 500 MOhm 500 V DC IEC 60255-5 > 500 MOhm 500 V DC IEC 60664-1
Maximum measuring cycle140 ms measurement cycle as true rms value
Safety reliability dataB10d = 360000 MTTFd = 399.5 years
Switching capacity in1250 VA
Relay monitored parametersPhase sequence Asymmetry Undervoltage and overvoltage in window mode Phase failure detection
Product specific applicationFor 3-phase supply
Electromagnetic compatibilityEmission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2
Adjustment of asymmetry threshold5...15 % of Un selected
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...122 °F (-20...50 °C)

Product details

Overview

The RM35TF30SP01 is a Schneider Harmony multifunction control relay that monitors voltage asymmetry, phase loss, and phase sequence on a three-phase supply, switching a DPDT (2 Form C) output rated 5 A. It is rated for 15 gn 11 ms shock per IEC 60255-21-1, mounts on a 35.56 mm DIN rail, and carries CE marking with IP20 finger-safe protection.

Selection vs RM17UB310

Compared to the RM17UB310, which offers a single C/O contact rated 1250 VA, the RM35TF30SP01 provides two C/O contacts (DPDT) at 5 A, giving more switching flexibility for multi-load or dual-threshold applications.

MPN
RM35TF30SP01
