Schneider Electric RM35TF36
MPNRM35TF36
Active

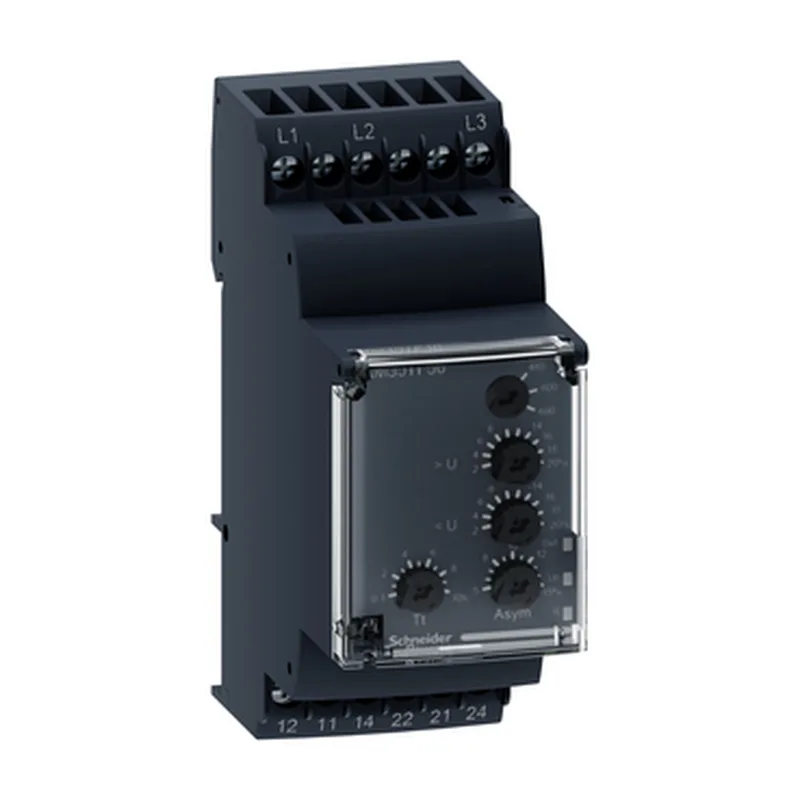

3 phase control relay, Harmony Control Relays, 480 to 690V AC, phase sequence, phase failure, phase imbalance, UV and OV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Multifunction control relay |
| Control type | Without test button |
| Time delay type | Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Range of product | Harmony Control Relays |
| Product or component type | 3-phase control relay |
| Contacts type and composition | 2 C/O |
| Voltage range | 480...690 V phase to phase |
| Supply voltage limits | 384...828 V AC, 3 phase |
| Dielectric test voltage | 2.3 kV AC 50/60 Hz, 1 min IEC 60255-27 |
| Maximum switching voltage | 250 V AC |
| Supply voltage | 480...690 V AC, self-powered |
| Measurement voltage limits | 384...828 V AC |
All specifications
| Parameter | Value |
|---|---|
| Voltage detection threshold | < 300 V |
| Threshold adjustment voltage | -20...+20 % in the range 480...690 V AC |
| Coil voltage | 480...690 V |
| Voltage | 600 V IEC 60664-1 |
| Control circuit voltage limits | - 20 % + 20 % Un |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60664-1 |
| Nominal output current | 5 A |
| Maximum switching current | 5 A AC 5 A DC |
| Minimum switching current | 10 mA 12 V DC |
| Delay at power up | 650 ms |
| Power consumption in | 0...22 VA 690 V AC 50 Hz 0...26 VA 690 V AC 60 Hz |
| Supply frequency | 50/60 Hz +/- 5 % |
| Control circuit frequency | 50...60 Hz +/- 5 % |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) IP50 IEC 60529 front panel) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Response time | < 300 ms (in the event of a fault) |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 93...97 % 77...131 °F (25...55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6...150 Hz) |
| Non-dissipating shock wave | 4 kV |
| Depth | 2.8 in (72 mm) |
| Width | 1.4 in (35 mm) |
| Height | 3.5 in (90 mm) |
| Housing material | Polycarbonate |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | EN/IEC 60255-1 |
| Marking | WEEE China RoHS ROHS |
| Category | US10CP221122 |
| Hysteresis | 2 % fixed |
| Relay name | RM35TF |
| Reset time | 1500 ms at 480 V |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 2 C/O |
| Repeat accuracy | 3 % time delay 0.5 % input and measurement circuit |
| Local signalling | LED (green) for power ON LED (yellow) for relay ON LED (yellow) for fault |
| Measurement error | < 1 % over the whole range with voltage variation 0.05 %/°C with temperature variation |
| Measurement range | 480...690 V AC |
| Tightening torque | 5.3...8.8 lb.in 0.6...1 N.m |
| Operating position | Any position without derating |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 100 MOhm 500 V DC IEC 60255-27 |
| Maximum measuring cycle | 140 ms measurement cycle as true rms value |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Undervoltage and overvoltage in window mode Phase sequence Phase failure detection Asymmetry |
| Product specific application | For 3-phase supply |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Adjustment of asymmetry threshold | 5...15 % of Un selected |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
| Resistance to electrostatic discharge | 6 kV contact IEC 61000-4-2 8 kV air |
