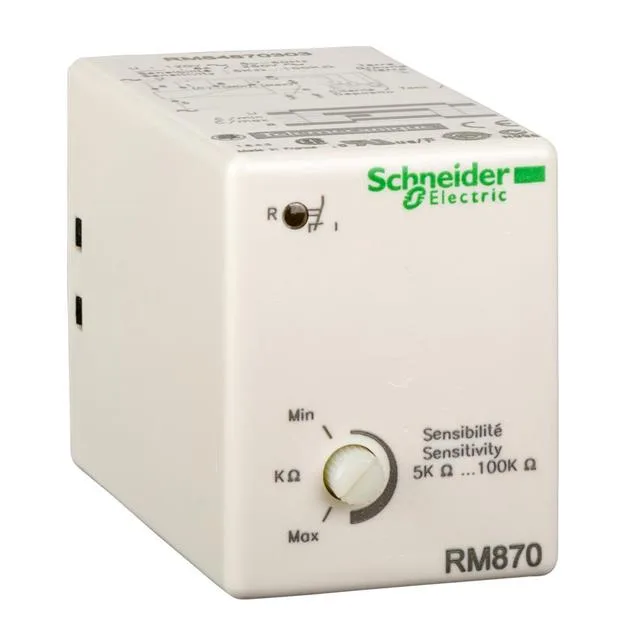

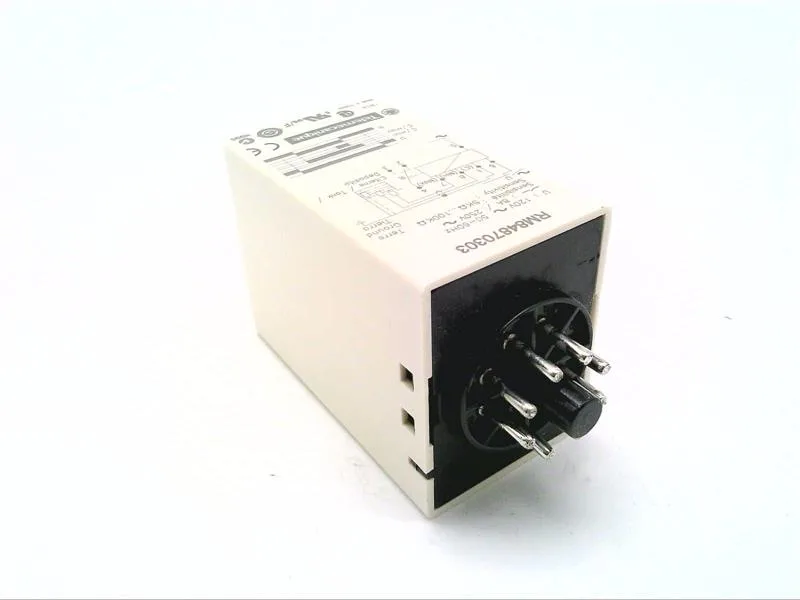

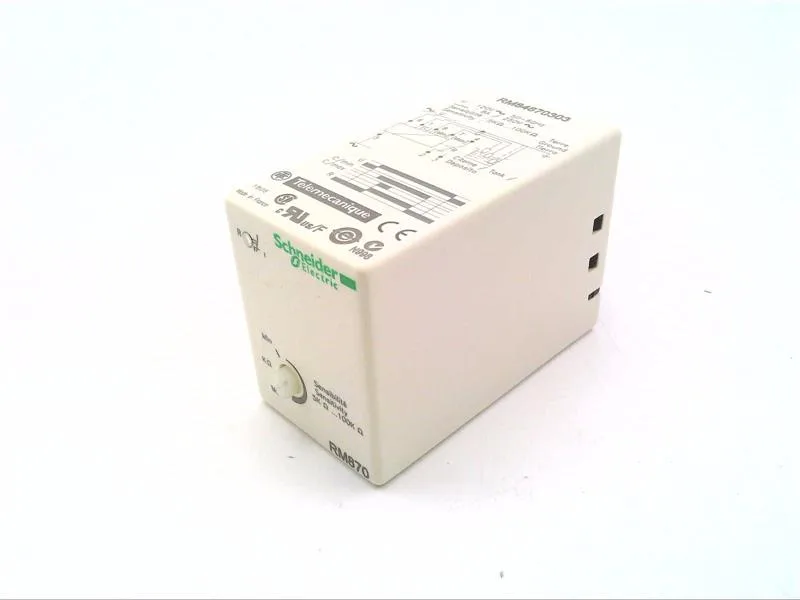

Schneider Electric RM84870303
MPNRM84870303
Obsolete
LIQUID LEVEL CONTROL RELAY RM84
$39.96 – $63.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug-in liquid level control relay |
| Range of product | Harmony Relay |
| Product or component type | Industrial measurement and control relays |
| Contacts type and composition | 1 C/O relay output, AgCdO |
| Voltage range | 0.85...1.15 x Un |
| Isolation voltage | 2500 V AC contacts and electrodes from the supply |
| Maximum electrode voltage | 24 V AC 50/60 Hz |
| Maximum output current | 8 mA AC AC-1 resistive |
| Maximum electrode current | 1 mA 50/60 Hz |
| Power consumption | 3 VA |
| Maximum cable capacity | 0 mF |
| Response time | 300 ms high level 500 ms low level |
All specifications
| Parameter | Value |
|---|---|
| Width | 1.5 in (39 mm) |
| Category | US10CP222370 |
| Pin number | 8 |
| Relay name | RM84870 |
| Sensitivity scale | 5...100 kOhm |
| Measurement accuracy | 0...30 % |
| Relay monitored parameters | Detection by resistive probes |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
RM84870303
