Schneider Electric RPF2BJD
MPNRPF2BJD
Active

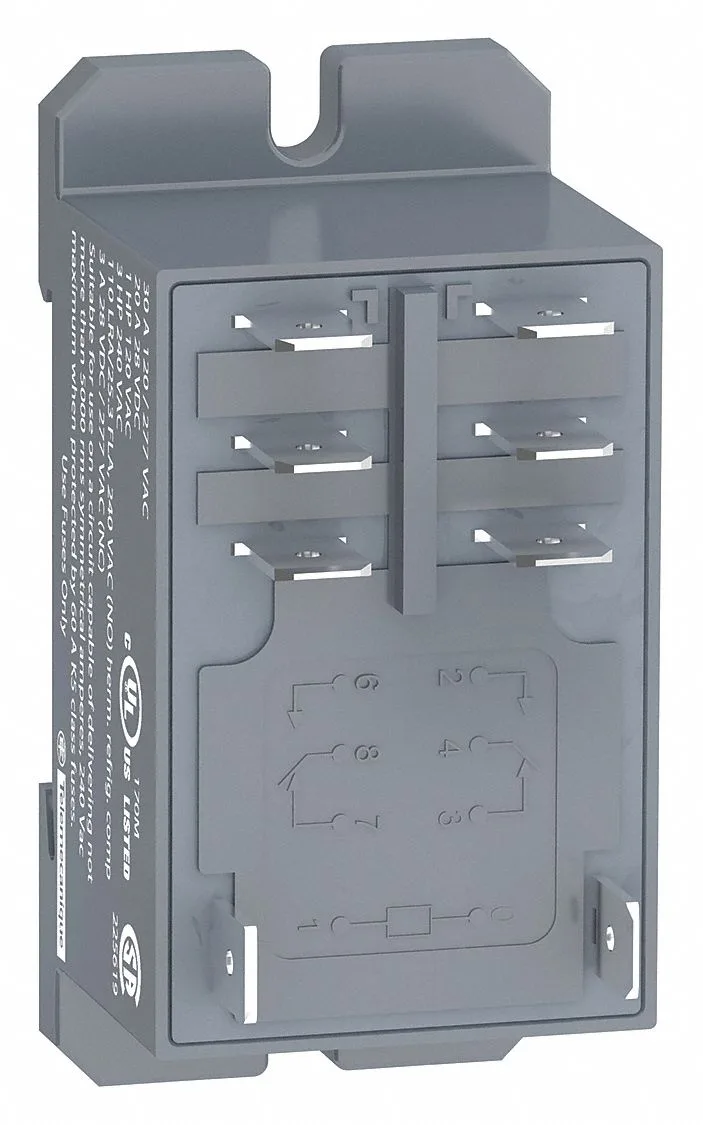

Power relay, Harmony, DIN rail or panel mount relay, 30A, 2CO, 12V DC|Power relay, Harmony, DIN rail or panel mount relay, 30A, 2CO, 12V DC
$5.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Power relay |
| Series name | RPF series |
| Control type | Without lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Coil voltage | 12 V DC |
| Voltage | 250 V IEC 300 V UL |
| Control circuit voltage limits | 9.6...13.2 V |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 500 mA |
| [Ie] rated operational current | 30 A 277 V AC) NO UL 20 A 28 V DC) NO UL 30 A 250 V AC) NO IEC 25 A 28 V DC) NO IEC 3 A 277 V AC) NC UL 3 A 28 V DC) NC UL 3 A 250 V AC) NC IEC 3 A 28 V DC) NC IEC |
| [Ithe] conventional enclosed thermal current | 25 A -40...131 °F (-40...55 °C) relays side by side without a gap 30 A -40...131 °F (-40...55 °C) 13 mm gap between two relays |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting support | DIN rail Panel |
| Pollution degree | 3 |
| Shock resistance | 10 gnin operation 30 gnnot operating |
| Vibration resistance | 3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 10 gn +/- 1 mm 10...150 Hz)5 cycles not operating |
| CAD overall depth | 1.5 in (39.2 mm) |
| CAD overall width | 1.3 in (33.7 mm) |
| Contacts material | Silver tin oxide |
| CAD overall height | 2.7 in (68.5 mm) |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 5000000 cycles |
| Standards | UL 508 CSA C22.2 No 14 IEC 61810-1 |
| Category | US10CP221127 |
| Status LED | Without |
| Test levels | Level A group mounting |
| Shape of pin | Flat (faston type) |
| Operating rate | <= 18000 cycles/hour no-load |
| Average resistance | 86 Ohm at 68 °F (20 °C) +/- 10 % |
| Compatibility code | RPF |
| Operating position | Any position |
| Average consumption | 1.7 W |
| Device presentation | Complete product |
| Dielectric strength | 2000 V AC between poles with basic 4000 V AC between coil and contact with reinforced 1500 V AC between contacts with micro disconnection |
| Protection category | RT II |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 10 % |
| Maximum switching capacity | 7500 VA/700 W |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
