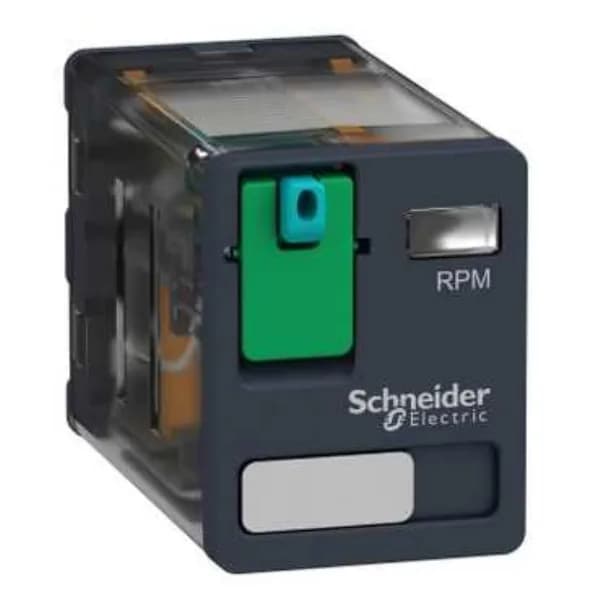

Schneider Electric RPM21FD
MPNRPM21FD
Obsolete
SQUARE D RPM21FD: PLUG-IN RELAY 250V 15A RPM +OPTIONS
$13.97Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series name | Power |
| Control type | Lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Coil voltage | 110 V DC |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| Rated operational voltage limits | 88...121 V DC |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| [Ie] rated operational current | 15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC |
All specifications
| Parameter | Value |
|---|---|
| [Ithe] conventional enclosed thermal current | 15 A -40...131 °F (-40...55 °C) |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Pollution degree | 3 |
| Shock resistance | 15 gnin operation 30 gnnot operating |
| Vibration resistance | 3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 5 gn +/- 1 mm 10...150 Hz)5 cycles not operating |
| Contacts material | AgNi |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 10000000 cycles |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Category | US10CP221127 |
| Status LED | Without |
| Test levels | Level A group mounting |
| Release time | 20 ms at nominal voltage |
| Shape of pin | Flat |
| Operating rate | <= 18000 cycles/hour no-load |
| Device short name | RPM |
| Operating position | Any position |
| Device presentation | Complete product |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
| Protection category | RT I |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 3750 VA 420 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
RPM21FD
