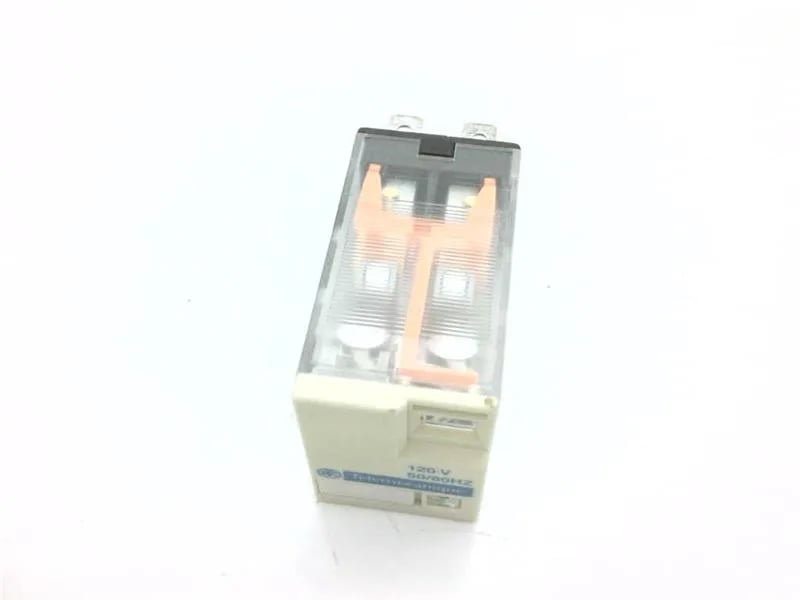

Schneider Electric RPM23F7

Schneider RPM23F7 Harmony RPM power relay, 120 V AC coil, 15 A

MPNRPM23F7
Active

Schneider RPM23F7 Relays & Sockets — now discontinued, supplied from remaining surplus and broker stock.

$11.43Ref. price · indicative, final on quote
Schneider Electric RPM23F7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

RPM23F7 key specifications
ParameterValue
TypePower relay
Series nameRPM series
Control typeWithout lockable test button
Range of productHarmony Electromechanical Relays
Product or component typePlug-in relay
Contacts type and composition2 C/O
Maximum switching voltage250 V IEC
Drop-out voltage threshold>= 0.15 Uc AC
Coil voltage120 V AC 50/60 Hz
Voltage250 V IEC 300 V CSA 300 V UL
Rated operational voltage limits96...132 V AC
[Uimp] rated impulse withstand voltage4 kV 1.2/50 µs

All specifications

RPM23F7 additional specifications
ParameterValue
[Ie] rated operational current15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC
[Ithe] conventional enclosed thermal current15 A -40...131 °F (-40...55 °C)
Degree of protection (Housing only)IP40 conforming to IEC 60529
Mounting supportPlug-in
Pollution degree3
Shock resistance15 gnin operation 30 gnnot operating
Vibration resistance3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 5 gn +/- 1 mm 10...150 Hz)5 cycles not operating
Contacts materialAgNi
Electrical durability100000 cycles resistive
Mechanical durability10000000 cycles
StandardsCSA C22.2 No 14 UL 508 IEC 61810-1
CategoryUS10CP221127
Status LEDWith
Test levelsLevel A group mounting
Release time20 ms at nominal voltage
Shape of pinFlat (faston type)
Operating rate<= 18000 cycles/hour no-load
Operating positionAny position
Device presentationComplete product
Dielectric strength1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic
Protection categoryRT I
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching capacity3750 VA 420 W
Minimum switching capacity170 mW 10 mA, 17 V
Average coil consumption in1.1 60 Hz
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)

Product details

Overview

The RPM23F7 is a Schneider Harmony Electromechanical Relays power relay with a 120 V AC coil switching 15 A through 2NO-2NC contacts on 2 poles, packaged as a plug-in unit for a socket mount. Rated for 100,000 resistive cycles at full load, it carries UL 508, CSA C22.2 No 14, and IEC 61810-1 approvals and withstands 15 g shock in operation.

The 15 A continuous rating on a 120 V AC coil suits general-purpose switching in control panels; the 2NO-2NC contact arrangement gives one normally-open and one normally-closed pair per pole, covering both make and break circuits from a single relay. Its 15 g operational shock rating means it holds contact continuity under moderate machine vibration — specify for panels mounted on pumps, conveyors, or light industrial equipment rather than high-impact presses.
