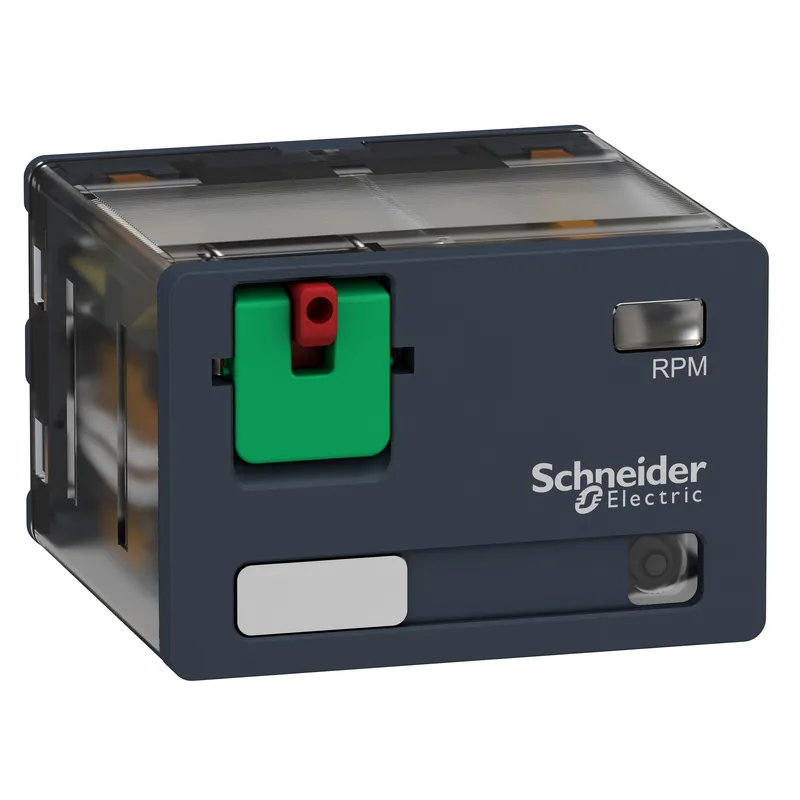

The RPM42E7: The 4 C/O contact arrangement with AgNi material handles 15 A at 250 V AC for normally-open circuits and 7.5 A for normally-closed circuits per IEC. For UL/CSA, the same 15 A is rated at 277 V AC and 28 V DC. Coil is 48 V AC 50/60 Hz with a drop-out threshold ≥0.15 Uc and release time of 20 ms at nominal voltage. Mechanical durability is 10 million cycles; electrical durability is 100,000 cycles under resistive load. The no-load operating rate is ≤18,000 cycles/hour. Pollution degree 3 and IP40 housing suit industrial control panels with moderate dust and conductive contamination.
Standards and installation detail
Listed to CSA C22.2 No 14, IEC 61810-1, and UL 508, covering safety and performance requirements for North American and IEC markets. Rated impulse withstand voltage 4 kV (1.2/50 µs) and dielectric strength 1500 V AC between contacts, 2000 V AC between coil and contact. Ambient operating temperature -40 to 55 °C. Plug-in package with lockable test button and status LED. Flat pins, any mounting position. Level A group mounting. Internal category code US10CP221127 is Schneider's classification for this relay family.
